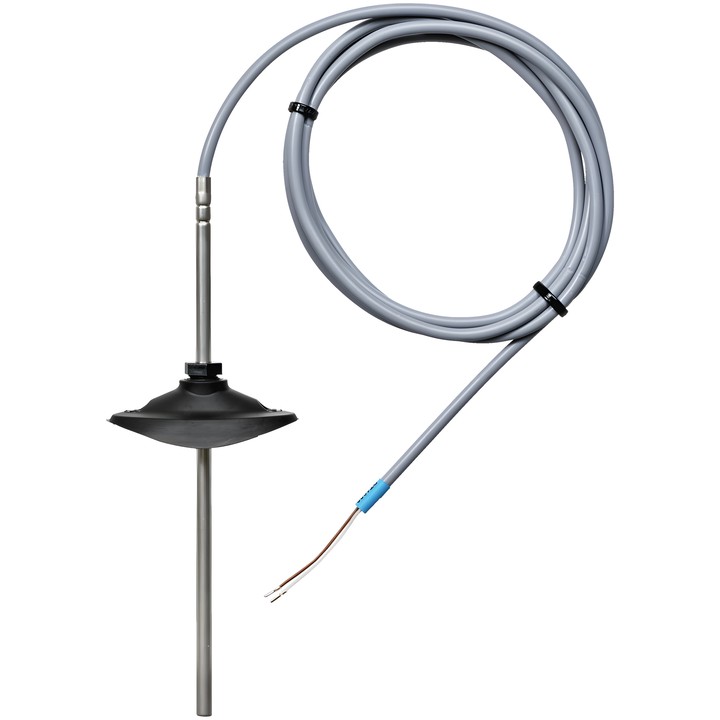

Belimo 01CT-1QLF - cable temperature sensor with mounting flange

Belimo 01CT-1QLF - cable temperature sensor with mounting flange

Belimo
zł120.85
VAT included
zł98.25 tax excluded

Passive cable temperature sensor for measuring in air ducts. NTC20k output signal, 100 mm long and 6 mm diameter probe, and 2 m, 2-wire cable.

Mounting flange for the probe included. Protection rating IP67 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 01CT-1QLF – temperature sensor for air ducts

Passive cable sensor with a stainless steel probe and PVC cable. Designed for measuring temperature in air ducts; a mounting flange for the 6 mm diameter probe is included.

Key data

  • Output signal: NTC20k.
  • Probe length: 100 mm; probe diameter: 6 mm.
  • Electrical connection: 2 m, 2-wire cable.
  • Measuring range: -35...100°C [-30...210°F].
  • NTC20k measuring current: <0.5 mA @ 25°C [77°F].
  • Accuracy for NTC..: ±0.2°C @ 25°C [±0.35°F @ 77°F].
  • Protection rating: IP67 (IEC/EN) and NEMA 4X (NEMA/UL).
  • IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).
  • Mounting flange included: A-22D-A03, plastic, for 6 mm probe.

  • Brand
    Belimo
  • Reference
    01CT-1QLF
  • EAN13
    7630498117466

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    NTC20k
  • Passive temperature sensor output
    NTC20k
  • Probe length
    100 mm

Techniczna karta katalogowa

Download (819.61KB)

Instrukcja montażu

Download (401.67KB)

Techniczna karta katalogowa – 01CT-1..F

Download (817.46KB)

Environmental Declaration – 01CT..

Download (71.67KB)
