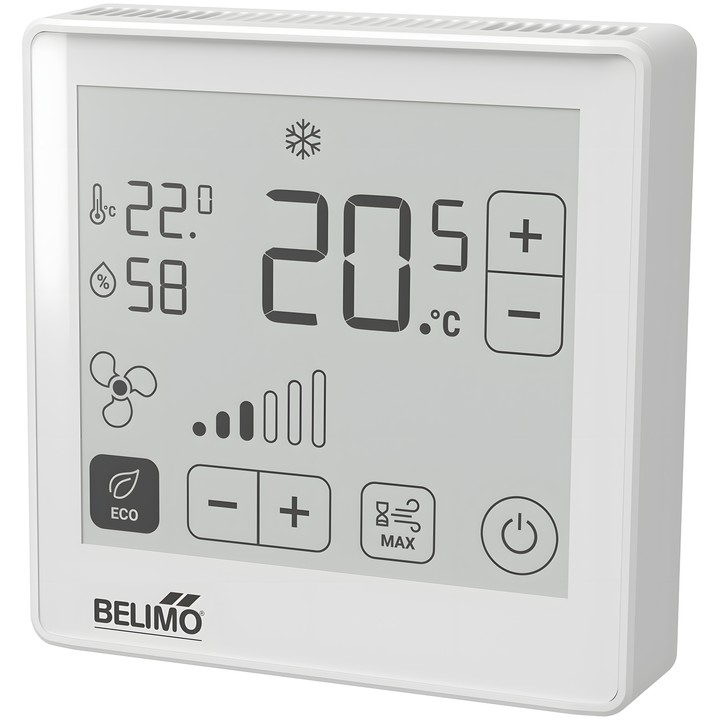

Belimo P-22RTH-1800D-1 - room temperature and humidity sensor and setpoint adjuster

Name: Belimo P-22RTH-1800D-1 - room temperature and humidity sensor and setpoint adjuster
Brand: Belimo
SKU: P-22RTH-1800D-1
Price: 856.89 PLN
Availability: BackOrder

Belimo

zł856.89

VAT included

zł696.66 tax excluded

Room sensor and setpoint adjuster for measuring temperature and relative humidity. Equipped with a touch ePaper display, MP-Bus communication and 3 analogue outputs.

AC/DC 24 V supply. The analogue outputs can be configured as 0…10 V, 0…5 V, 2…10 V or 4…20 mA using Belimo Assistant 2.

Delivery in approx. 14 days

Belimo P-22RTH-1800D-1

Room sensor and setpoint adjuster for measuring temperature and relative humidity. The model has a touch ePaper display, communicates via MP-Bus and provides 3 configurable analogue outputs.

Key features and specifications

Measured values: temperature, relative humidity and dew point.
Temperature measuring range: 0...50°C [32...122°F].
Relative humidity measuring range, factory setting: 0...100% RH.
Rated voltage: AC/DC 24 V.
Communication: MP-Bus.
3 analogue outputs: 0…10 V (factory setting), 0…5 V, 2…10 V or 4…20 mA; selection using Belimo Assistant 2. Outputs AO1, AO2 and AO3 can be configured via NFC.
Touch ePaper display measuring 69x62 mm.
Electrical connection: spring terminals 0.2...2.5 mm².
IEC/EN degree of protection: IP30.
Housing: PC, white, RAL 9003; surface-mounted. Device dimensions: 86x86x18 mm (HxWxD).

Factory assignment of analogue outputs: AO1 — temperature, AO2 — temperature setpoint, AO3 — humidity.
