Belimo LV24A-SR-TPC - linear actuator for globe valves

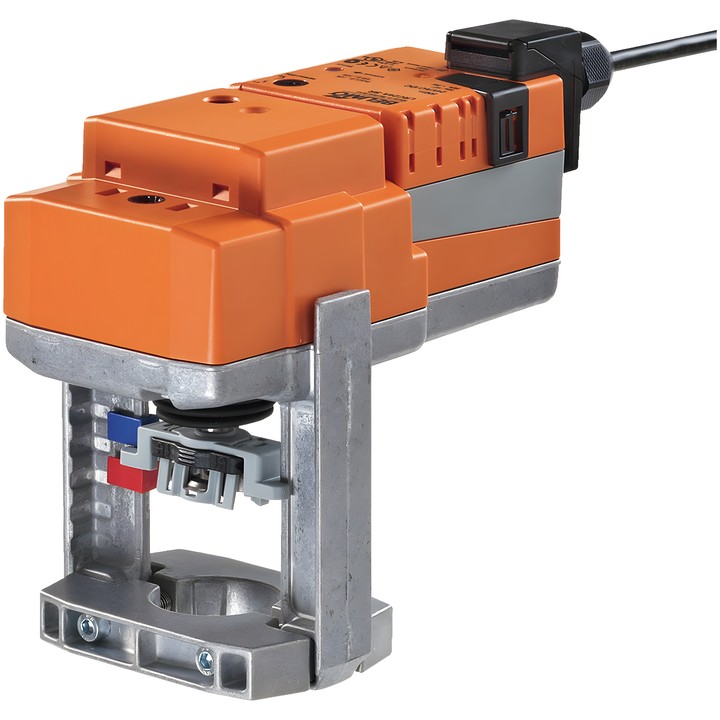

Belimo LV24A-SR-TPC linear actuator

Modulating actuator designed for 2-way and 3-way globe valves. The Y control signal determines the actuator position, while the U feedback voltage enables electrical indication of its position.

Main features and specifications

• Actuating force: 500 N; stroke: 15 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Y operating range: 2...10 V; U position feedback signal: 2...10 V.
• Motor operating time: 150 s / 15 mm.
• Power consumption during operation: 1 W; at rest: 0.5 W; for cable sizing: 2 VA.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm² (4 mm² terminal).
• Manual push-button override with locking option; stroke adjustment range adaptation is started manually and performed automatically when power is first switched on.
• Mechanical position indicator; overload protection and automatic stop when the limit stop is reached.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
