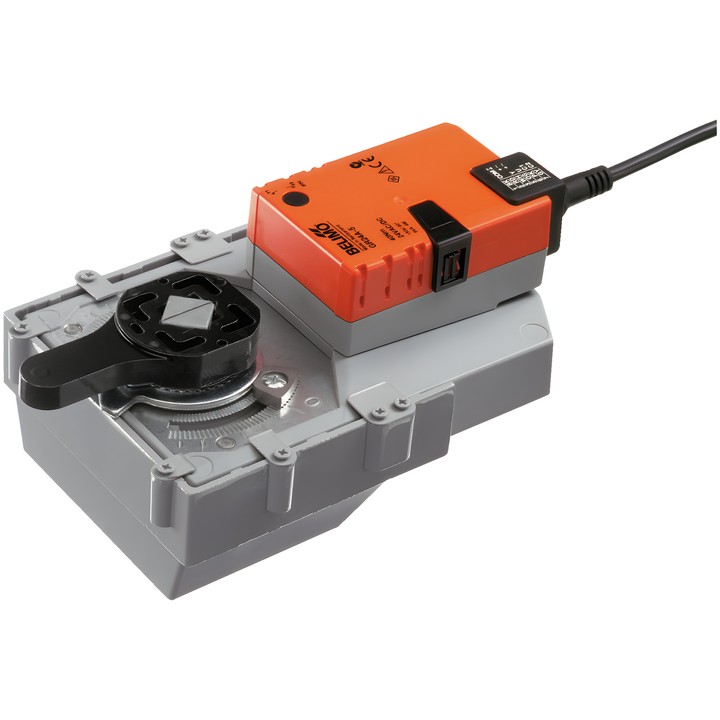

Belimo GR24A-SR-5 - rotary actuator for valves

Name: Belimo GR24A-SR-5 - rotary actuator for valves
Brand: Belimo
SKU: GR24A-SR-5
Price: 1675.30 PLN
Availability: BackOrder

Belimo

zł1,675.30

VAT included

zł1,362.03 tax excluded

Belimo GR24A-SR-5 rotary actuator for rotary valves and dampers. Torque 40 Nm, AC/DC 24 V supply, modulating control 2...10 V and 2...10 V position feedback signal.

Running time is 150 s / 90°. The actuator has an F05 connection flange, manual override button and IP54 protection rating.

Delivery in approx. 14 days

Belimo GR24A-SR-5

Rotary actuator for rotary valves and dampers, designed for stationary heating, ventilation and air conditioning installations. The control signal Y determines the actuator position, while voltage U is used for electrical indication of the valve position.

Key features and specifications

Torque: 40 Nm.
Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
Modulating control, Y operating range: 2...10 V; position feedback signal U: 2...10 V.
Running time: 150 s / 90°; positioning accuracy: ±5%.
Power consumption during operation: 4.5 W; at rest: 1.5 W; for wire sizing: 6.5 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Connection flange: F05; mechanical position indicator and adjustable mechanical rotation angle stops.
Manual override button with locking option.
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].
