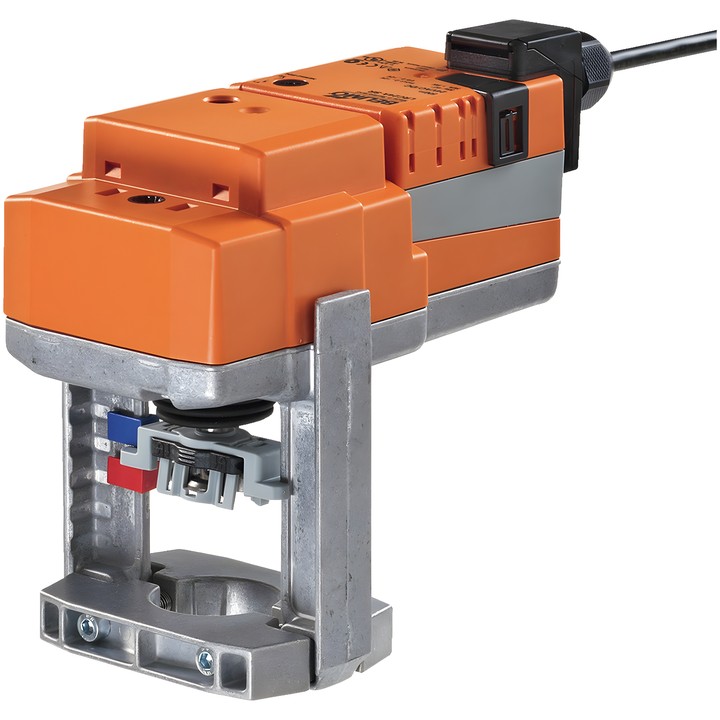

Belimo LV24A-TPC - linear actuator for globe valves

Belimo LV24A-TPC – actuator for globe valves

Linear actuator designed for 2-way and 3-way globe valves. It supports Close/Open and 3-point control.

Key features and technical data

• Actuator force: 500 N; stroke: 15 mm; operating time: 150 s / 15 mm.
• Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
• Power consumption during operation: 1 W; at rest: 0.5 W; for wire sizing: 1 VA.
• Power and control connection: terminals with a 1 m cable, 3x 0.75 mm²; 4 mm² terminal.
• Push-button manual override with the option to lock; mechanical position indicator.
• IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Valve mounting using form-fit clamping jaws; actuator can rotate 360° on the valve neck.
• Overload protection and automatic stop when the end position is reached.
