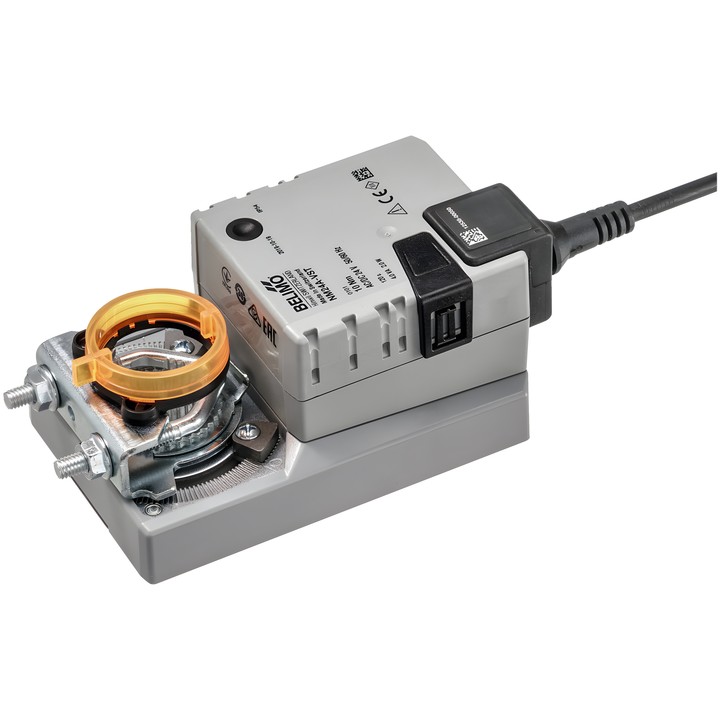

Belimo NM24A-VST-RE - VAV-Universal rotary actuator

Name: Belimo NM24A-VST-RE - VAV-Universal rotary actuator
Brand: Belimo
SKU: NM24A-VST-RE
Price: 825.01 PLN
Availability: BackOrder

Belimo

zł825.01

VAT included

zł670.74 tax excluded

Belimo NM24A-VST-RE rotary actuator in a retrofit VAV-Universal version for VAV and CAV units. Torque 10 Nm, AC/DC 24 V supply, PP bus control and running time 120 s / 90°.

Equipped with a 0.5 m cable with VST connector, universal shaft clamp 8...26.7 mm and mechanical rotation angle limiters.

Delivery in approx. 14 days

Belimo NM24A-VST-RE rotary actuator

Ready-to-connect VAV-Universal rotary actuator in a retrofit version, designed for VAV and CAV units in building services installations. According to the technical data sheet, it operates air dampers with an area of up to approx. 2 m².

Key features

Torque: 10 Nm.
Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
Control: PP bus.
Motor running time: 120 s / 90°; rotation angle: max. 95°.
Adjustable mechanical rotation angle limiters on both sides.
Manual adjustment by push-button, with locking option; mechanical plug-in position indicator.
Mechanical connection: universal shaft clamp 8...26.7 mm.
Power and control connection: 0.5 m cable with VST connector.
Power consumption during operation: 2 W; at rest: 0.4 W; for wire sizing: 4 VA.
IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

After system commissioning and after every change to the rotation angle, self-adaptation is required by pressing the adaptation button once.
