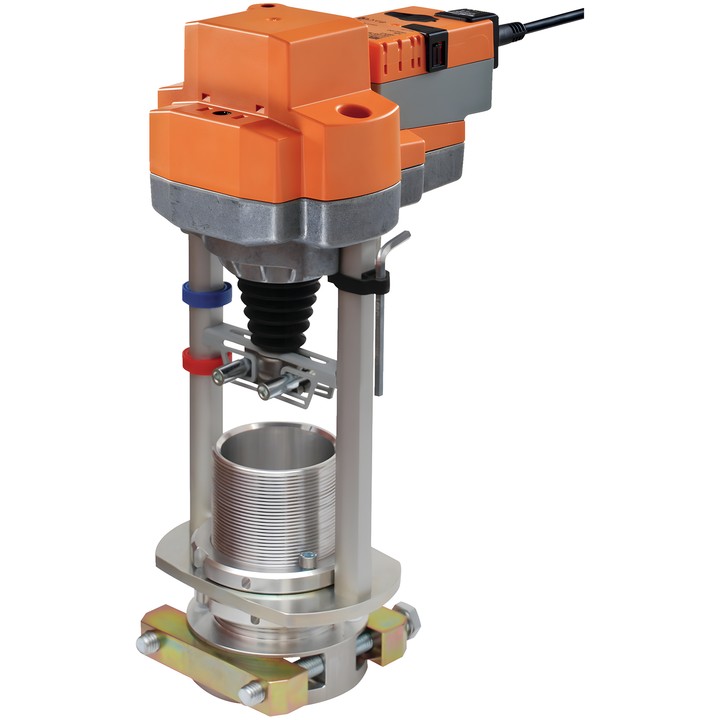

Belimo EVC24A-MF-RE - RetroFIT+ actuator for globe valves

Belimo EVC24A-MF-RE - RetroFIT+ actuator for globe valves

Belimo
zł4,217.35
VAT included
zł3,428.74 tax excluded

Configurable Belimo RetroFIT+ actuator for 2- and 3-way globe valves. Force 2500 N, AC/DC 24 V supply, 50 mm stroke and 2...10 V modulating control.

Motor running time is 35 s / 40 mm (44 s / 50 mm), adjustable from 44...113 s. The actuator has a 2...10 V feedback signal and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo EVC24A-MF-RE – actuator for globe valves

Configurable RetroFIT+ actuator for 2- and 3-way globe valves. Control is provided by the analogue Y signal, while voltage U is used to indicate the actuator position.

Key technical data

  • Actuator force: 2500 N; stroke: 50 mm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Operating range Y: 2...10 V; position feedback U: 2...10 V.
  • Motor running time: 35 s / 40 mm (44 s / 50 mm); adjustable running time: 44...113 s.
  • Power consumption: 11 W during operation and 1.5 W at rest; sizing value for cables: 18 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Manual override by push-button, with locking option; mechanical stroke indication.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

Parameters can be configured using Belimo Assistant 2 or ZTH EU. When voltage is first applied, the actuator adapts the operating range and feedback signal to the mechanical stroke range.

  • Brand
    Belimo
  • Reference
    EVC24A-MF-RE
  • EAN13
    7630498111532

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    11 W
  • Power consumption (holding)
    1.5 W
  • Rated power
    18 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    2500 N
  • Manual override
    Push-button, with locking option
  • Stroke
    50 mm
  • Running time (motor)
    35 s / 40 mm (44 s / 50 mm)
  • Variable motor running time
    44...113 s

Techniczna karta katalogowa

Download (1.99MB)

Instrukcja montażu

Download (1.32MB)

EU Declaration of Conformity – EVC24A-MF-RE

Download (32.78KB)

Environmental Declaration – EV..-RE

Download (72.24KB)
