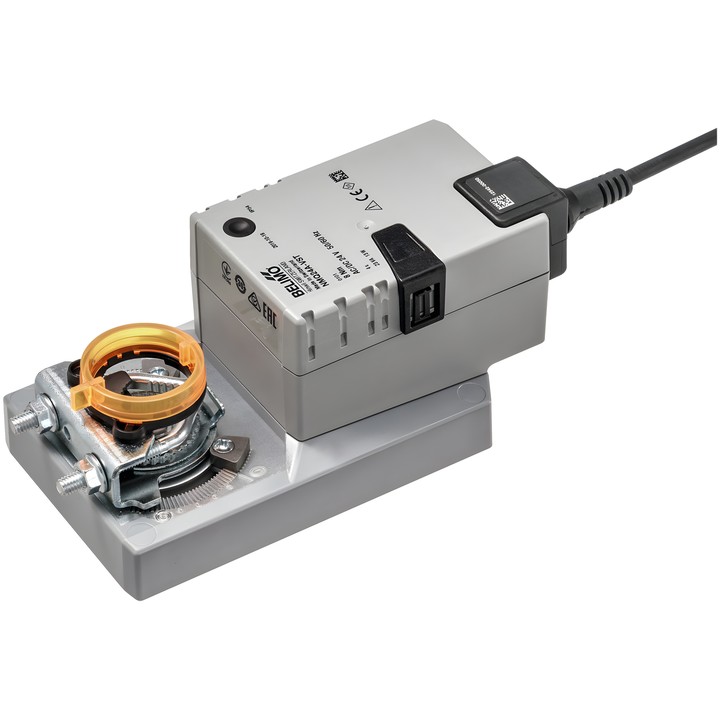

Belimo NMQ24A-VST - VAV/CAV damper rotary actuator

Name: Belimo NMQ24A-VST - VAV/CAV damper rotary actuator
Brand: Belimo
SKU: NMQ24A-VST
Price: 2255.82 PLN
Availability: OutOfStock

Belimo

zł2,255.82

VAT included

zł1,834.00 tax excluded

VAV-Universal rotary actuator for VAV and CAV units in building services installations. Torque 8 Nm, AC/DC 24 V supply, PP communication control and running time of 4 s / 90°.

Equipped with a 0.5 m cable with VST connector, universal shaft clamp 8...26.7 mm and mechanical rotation angle limiters. IEC/EN IP54 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NMQ24A-VST

Ready-to-connect VAV-Universal rotary actuator for VAV and CAV units in building services installations. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 2 m².

Key features and technical data

Motor torque: 8 Nm; control: PP communication.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Power consumption during operation: 13 W; in the rest position: 2 W; power rating for cable sizing: 23 VA.
Motor running time: 4 s / 90°; rotation angle: max. 95°.
Adjustable mechanical rotation angle limiters on both sides and a mechanical plug-in position indicator.
Manual adjustment using a pushbutton, with locking option.
Mechanical connection: universal shaft clamp 8...26.7 mm.
Power and control connection: 0.5 m cable with VST connector.
IEC/EN IP54 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...40°C [-22...104°F].

Adaptation is required after system commissioning and after every change to the rotation angle. Parallel operation: no.
