Belimo CM230-F-R - damper actuator

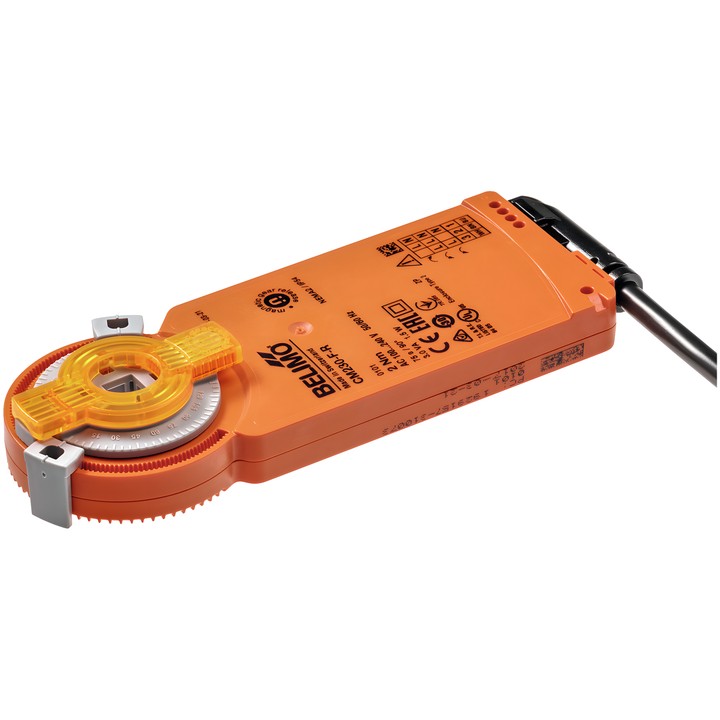

Belimo CM230-F-R damper actuator

Actuator designed to control air dampers in stationary heating, ventilation and air conditioning installations. According to the technical data sheet, it is suitable for air dampers with an area of up to approx. 0.4 m².

Key features and parameters

• Motor torque: 2 Nm.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
• Control: Open/Close, 3-point.
• Motor running time: 75 s / 90°; direction of movement: clockwise (cw).
• Angle of rotation: 0...287.5°; angle adjustment using mechanical end stops.
• Mechanical connection: 8x8 mm form-fit connection.
• Manual override using a magnet; mechanical position indicator.
• Power consumption during movement: 1.5 W; at rest: 1 W; power consumption for wire sizing: 3 VA.
• Power and control connection: 1 m cable, 3x 0.75 mm².
• Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
• Ambient temperature: -30...50°C [-22...122°F].

The actuator is mounted directly on the damper shaft and secured against rotation by a Z-ARCM clip, which is included in the scope of delivery. The device is protected against overload and stops automatically when the end stop is reached.
