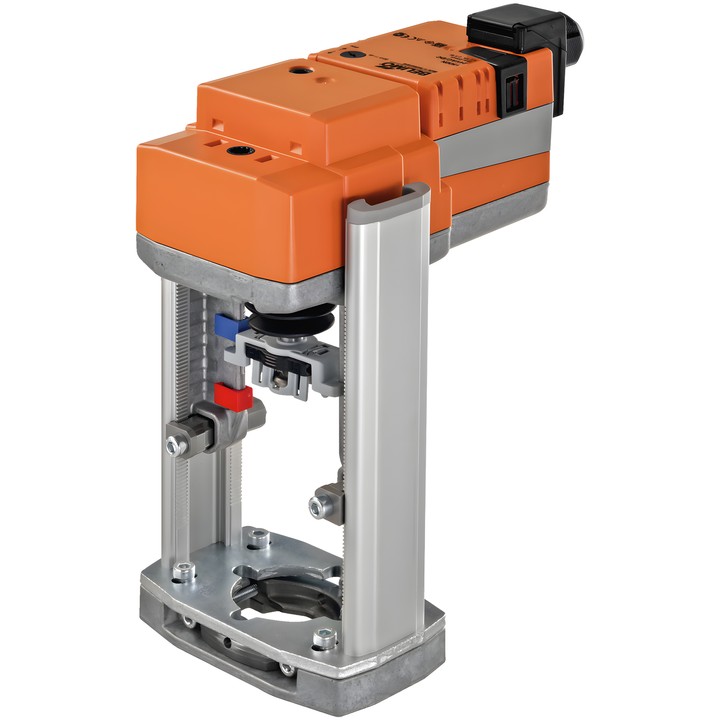

Belimo LV230A-RE - actuator for RetroFIT+ globe valves

Belimo LV230A-RE - actuator for RetroFIT+ globe valves

Belimo
zł1,450.54
VAT included
zł1,179.30 tax excluded

Belimo LV230A-RE actuator for 2- and 3-way globe valves. Force 500 N, AC 100...240 V supply, Close/Open or 3-point control, 20 mm stroke and 200 s / 20 mm running time.

Delivery in approx. 14 days
Share

Belimo LV230A-RE

RetroFIT+ actuator for 2- and 3-way globe valves. Designed for installation on a wide range of valves from various manufacturers.

Key features

  • Actuator force: 500 N; stroke: 20 mm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 200 s / 20 mm.
  • Power consumption during operation: 2 W; at rest: 1 W; for wire sizing: 4.5 VA.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm).
  • Manual override using a push button with locking option.
  • Mechanical position indicator; overload protection and automatic stop at the end position.
  • IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.

  • Brand
    Belimo
  • Reference
    LV230A-RE
  • EAN13
    7630498112683

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    1 W
  • Rated power
    4.5 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    500 N
  • Manual override
    Push-button, with locking option
  • Stroke
    20 mm
  • Running time (motor)
    200 s / 20 mm

Techniczna karta katalogowa

Download (1.29MB)

Instrukcja montażu

Download (2.63MB)

EU Declaration of Conformity – LV230A-RE

Download (310.81KB)

Environmental Declaration – LV..-RE

Download (72.06KB)
