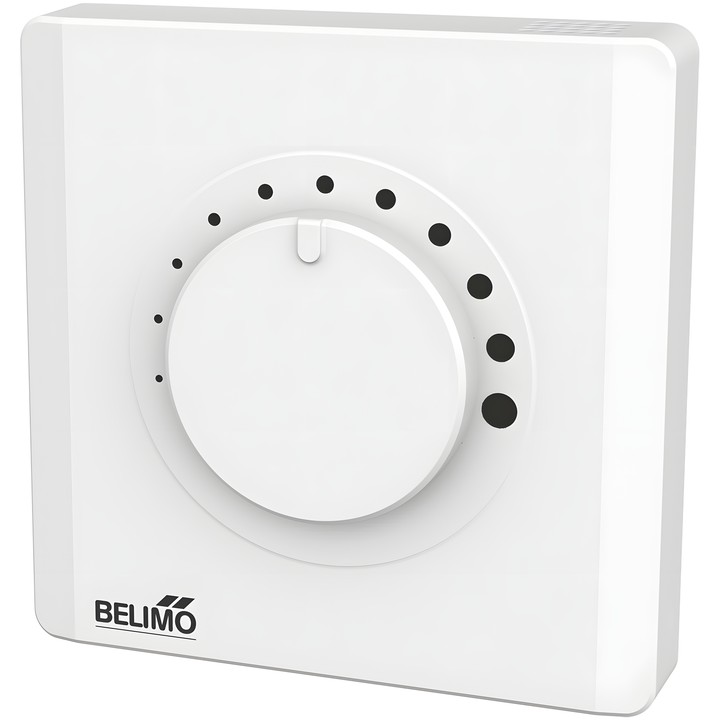

Belimo P-01RT-1L-0 - passive room temperature setpoint adjuster

Belimo P-01RT-1L-0 - passive room temperature setpoint adjuster

Belimo
zł102.88
VAT included
zł83.64 tax excluded

The Belimo P-01RT-1L-0 passive room unit measures room temperature and sets the setpoint. Temperature sensor output signal: NTC10k (10k2); potentiometer: 2.5...8.5 kΩ.

Delivery in approx. 14 days
Share

Belimo P-01RT-1L-0

Passive room temperature setpoint adjuster for measuring air temperature and setting the temperature setpoint.

Key features

  • Temperature sensor output signal: NTC10k (10k2).
  • Potentiometer: 2.5...8.5 kΩ; typical potentiometer accuracy: ±15%.
  • Temperature measuring range: 0...50°C [32...122°F]; NTC.. sensor accuracy: ±0.2°C @ 25°C [±0.35°F @ 77°F].
  • NTC10k (10k2) measuring current: <2 mA @ 25°C [77°F].
  • Typical time constant τ (63%) in a room: 360 s.
  • IEC/EN protection rating: IP30.
  • Spring terminals for 0.5...1.5 mm² wires.
  • PC housing, white, RAL 9003; dimensions 86x86x16.5 mm (HxWxD).

  • Brand
    Belimo
  • Reference
    P-01RT-1L-0
  • EAN13
    7630498110030

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    NTC10k (10k2)
  • Passive temperature sensor output
    NTC10k (10k2)

Techniczna karta katalogowa

Download (1.51MB)

Instrukcja montażu

Download (868.94KB)

Techniczna karta katalogowa – P-01RT-1..

Download (1.52MB)

EU Declaration of Conformity – P-01RT-1L-0

Download (37.56KB)

Environmental Declaration – P-01RT..

Download (70.24KB)
