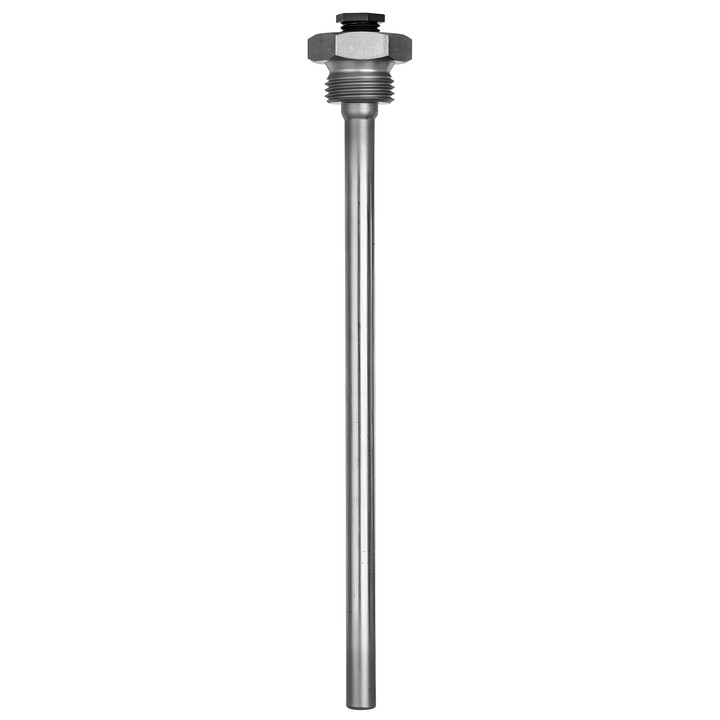

Belimo A-22P-A06 - sleeve for mounting a temperature sensor

Belimo A-22P-A06 - sleeve for mounting a temperature sensor

Belimo
zł103.89
VAT included
zł84.46 tax excluded

Stainless steel sleeve for mounting immersion and cable temperature sensors 01DT.., 22DT.., 01CT.. and 22CT... The sleeve is 50 mm long and has a diameter of 9 mm.

G 1/2" external thread and integrated compression fitting. Spanner size: SW27.

Delivery in approx. 14 days
Share

Belimo A-22P-A06 sleeve

Stainless steel sleeve designed for mounting immersion and cable temperature sensors 01DT.., 22DT.., 01CT.. and 22CT... It has a G 1/2" external thread and an integrated compression fitting.

Key data

  • Sleeve length: 50 mm; diameter: 9 mm.
  • Spanner size: SW27.
  • Maximum flow velocity: 29.5 m/s.
  • Media: water and water-glycol mixture.
  • PN: 40; medium temperature: up to max. 200°C.
  • Sleeve material: machined part V4A (1.4404), tube V4A (1.4571); pressure screw: polyamide (PA66/GF25).
  • Weight: 0.064 kg.

  • Brand
    Belimo
  • Reference
    A-22P-A06
  • EAN13
    7630498101670

Techniczna karta katalogowa

Download (467.24KB)

Techniczna karta katalogowa – A-22P-A.. G VA

Download (470.67KB)
