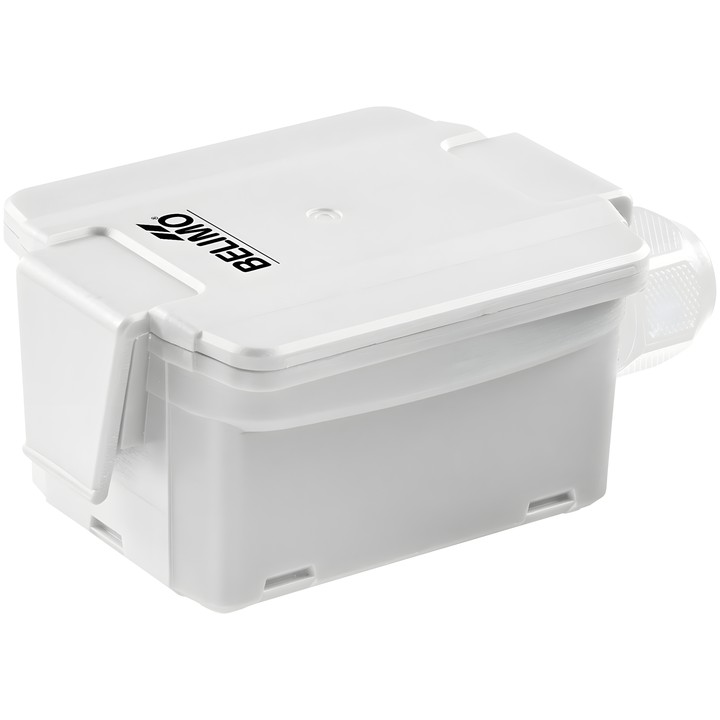

Belimo 01UT-1Q - passive outdoor temperature sensor

Name: Belimo 01UT-1Q - passive outdoor temperature sensor
Brand: Belimo
SKU: 01UT-1Q
Price: 129.15 PLN
Availability: BackOrder

Belimo

zł129.15

VAT included

zł105.00 tax excluded

Passive sensor for measuring outdoor air temperature with NTC20k output signal. Measuring range: -35...50°C [-30...120°F].

Enclosure protection rating IP65 / NEMA 4X. Connection via plug-in spring terminal block, max. 2.5 mm².

Delivery in approx. 14 days

Belimo 01UT-1Q – outdoor temperature sensor

Passive sensor for measuring outdoor air temperature. Model 01UT-1Q has an NTC20k output signal.

Key features

Measured medium: air; measured value: temperature.
Measuring range: -35...50°C [-30...120°F].
Accuracy for NTC.. sensors: ±0.2°C @ 25°C [±0.35°F @ 77°F].
NTC20k measuring current: <0.5 mA @ 25°C [77°F].
Protection rating: IP65 / NEMA 4X.
Electrical connection: plug-in spring terminal block, max. 2.5 mm²; cable gland with strain relief for cable ø6...8 mm.
Time constant τ (63%) indoors: typically 854 s.
Included: A-22D-A09 mounting plate, plugs and screws.

The device is intended for stationary heating, ventilation and air conditioning installations. Installation may only be carried out by qualified specialists.
