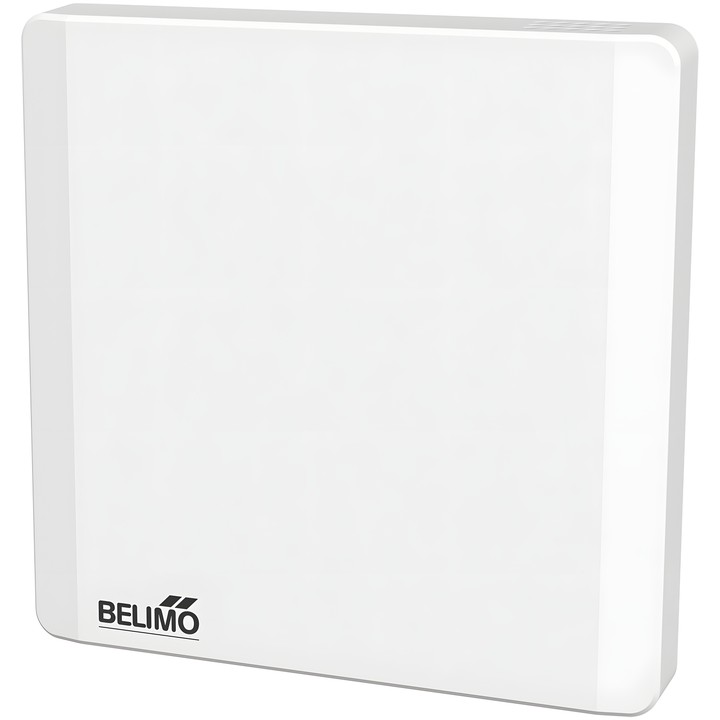

Belimo 01RT-1M-0 - passive room temperature sensor

Belimo 01RT-1M-0 – room temperature sensor

Passive sensor designed to measure room air temperature. Model 01RT-1M-0 has an NTC10k Pre (10k3) output.

Key features

• Measured variable: temperature; medium: air.
• Measuring range: 0...50°C [32...122°F].
• Output signal: NTC10k Pre (10k3).
• Measuring current for NTC10k Pre (10k3): <2.7 mA @ 25°C [77°F].
• Accuracy for NTC.. sensors: ±0.2°C @ 25°C [±0.35°F @ 77°F].
• Typical time constant τ (63%) in a room: 360 s.
• Electrical connection: spring terminal 0.5...1.5 mm².
• IEC/EN protection rating: IP30; IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).
• Housing: PC, white, RAL 9003.

Cable entry openings are located at the rear and at the top and bottom of the housing. Screws are included.
