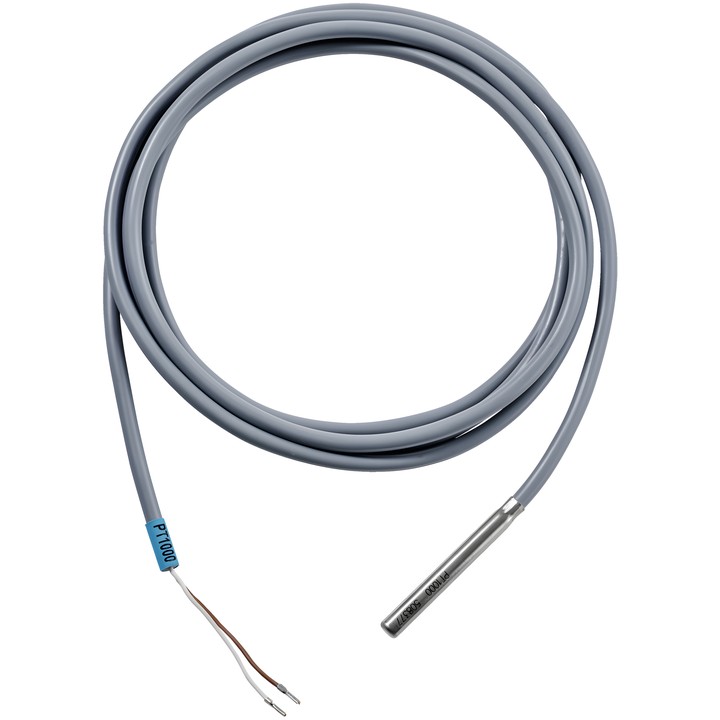

Belimo 01CT-1QH - passive cable temperature sensor

Belimo 01CT-1QH - passive cable temperature sensor

Belimo
zł60.15
VAT included
zł48.90 tax excluded

Belimo 01CT-1QH passive cable temperature sensor with NTC20k output signal. The stainless steel probe is 50 mm long and 6 mm in diameter; the 2-wire PVC cable is 2 m long.

It can be used as an air duct temperature sensor with a mounting flange or as an immersion sensor with a protection pocket.

Delivery in approx. 14 days
Share

Belimo 01CT-1QH – cable temperature sensor

Passive sensor for measuring the temperature of air or water. As a duct sensor, it is used with a mounting flange; as an immersion sensor, it is used with a protection pocket.

Key features

  • Output signal: NTC20k.
  • Measuring range: -35...100°C [-30...210°F].
  • Stainless steel probe: length 50 mm, diameter 6 mm.
  • Electrical connection: 2 m, 2-wire PVC cable.
  • Protection rating: IP67 and NEMA 4X.
  • Measuring current for NTC20k: <0.5 mA @ 25°C [77°F].
  • Accuracy for NTC..: ±0.2°C @ 25°C [±0.35°F @ 77°F].

With passive 2-wire sensors, the supply current affects measurement accuracy due to self-heating; it should not exceed the measuring current specified in the documentation.

  • Brand
    Belimo
  • Reference
    01CT-1QH
  • EAN13
    7630498117459

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    NTC20k
  • Passive temperature sensor output
    NTC20k
  • Probe length
    50 mm

Techniczna karta katalogowa

Download (884.87KB)

Instrukcja montażu

Download (962.72KB)

Techniczna karta katalogowa – 01CT-1..

Download (890.02KB)

Environmental Declaration – 01CT..

Download (71.66KB)
