Belimo P10000A - 10 kΩ feedback potentiometer

Belimo P10000A feedback potentiometer

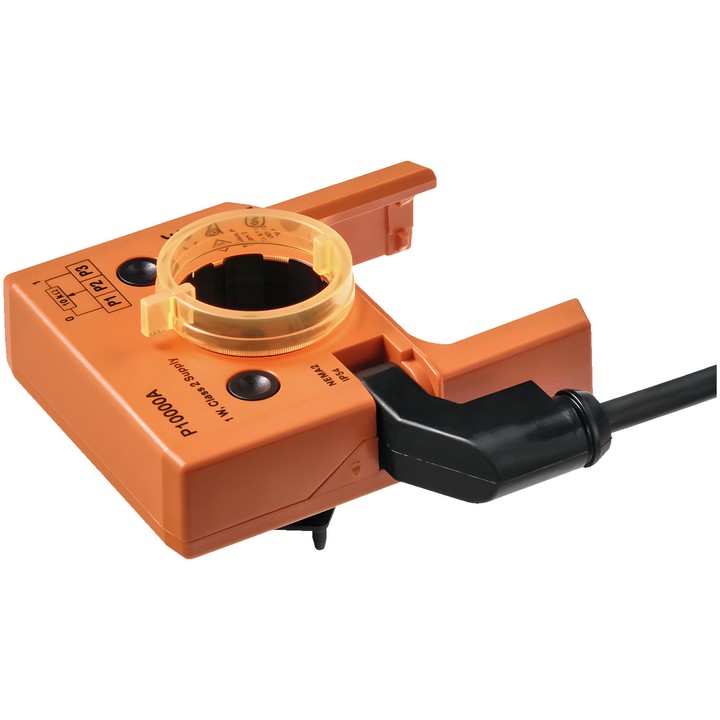

The P10000A is a feedback potentiometer for damper actuators and rotary actuators. The support plate transfers the position from the shaft clamp of a damper actuator or from the position indicator of a rotary actuator to the potentiometer.

Key technical data

• Nominal resistance: 10 kΩ; tolerance: ±5%.
• Maximum load: 1 W; linearity: ±2%.
• Resolution: min. 1%; residual resistance: max. 5% on both sides.
• Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].
• Product weight: 0.19 kg.

The potentiometer is designed for modulating damper control in combination with controllers with fixed feedback. It can also be used with damper position indication systems or as a positioning device for parallel operation of actuators. It is mounted directly on the shaft clamp of a damper actuator or on the position indicator of a rotary actuator.
