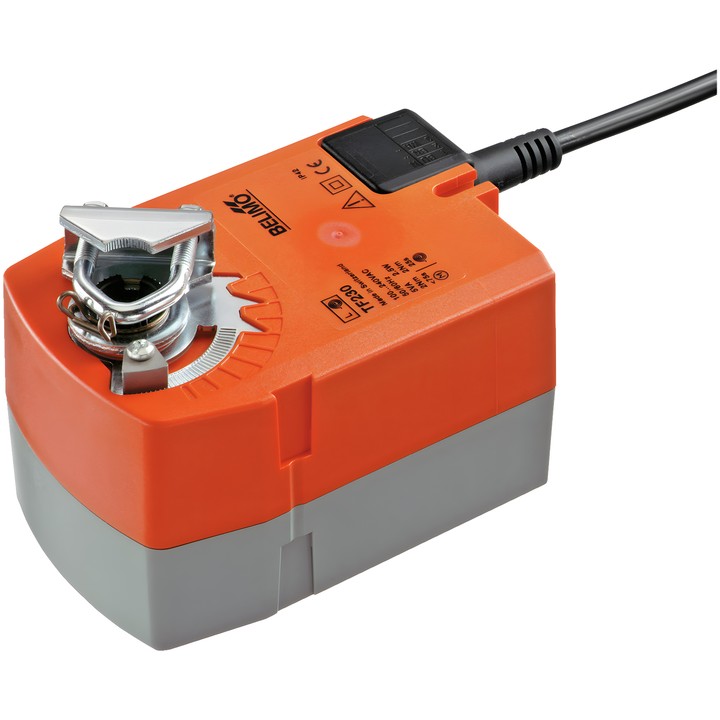

Belimo TF230 - rotary actuator for dampers with return spring

Name: Belimo TF230 - rotary actuator for dampers with return spring
Brand: Belimo
SKU: TF230
Price: 642.18 PLN
Availability: BackOrder

Belimo

zł642.18

VAT included

zł522.10 tax excluded

Belimo TF230 is a rotary actuator for dampers with safety function and Open/Close control. The motor torque is 2.5 Nm, the rated voltage is AC 100...240 V, and the motor running time is 75 s / 90°.

When the power supply is interrupted, the spring moves the damper to the safety position. The safety function running time is <25 s / 90°.

Delivery in approx. 14 days

Belimo TF230 actuator

TF230 is a rotary actuator with a safety function, designed to position dampers in technical building systems. According to the technical data sheet, it can operate air dampers with an area of up to approx. 0.5 m². During operation, the motor moves the damper and tensions the return spring; interruption of the power supply causes it to return to the safety position.

Key features and specifications

Motor and safety function torque: 2.5 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Open/Close.
Motor running time: 75 s / 90°; safety function running time: <25 s / 90°.
Rotation angle: max. 95°; adjustable using a mechanical stop.
Universal shaft clamp: 6...12.7 mm; mechanical position indicator.
Power and control connection: 1 m cable, 2x 0.75 mm².
Power consumption during operation: 2.5 W; at rest: 1.5 W; for cable sizing: 5 VA.
Degree of protection: IP42; ambient temperature: -30...50°C [-22...122°F].

The direction of motor and safety function movement is selected by L/R mounting. The actuator has no manual override function.
