Belimo TMC24A-S rotary damper actuator, powered by AC/DC 24 V. Torque 2 Nm, Close/Open or 3-point control and operating time 35 s / 90°.

Features an integrated 1x SPDT auxiliary switch, universal shaft clamp 6...20 mm and IP54 protection rating.

Delivery in approx. 14 days
Share

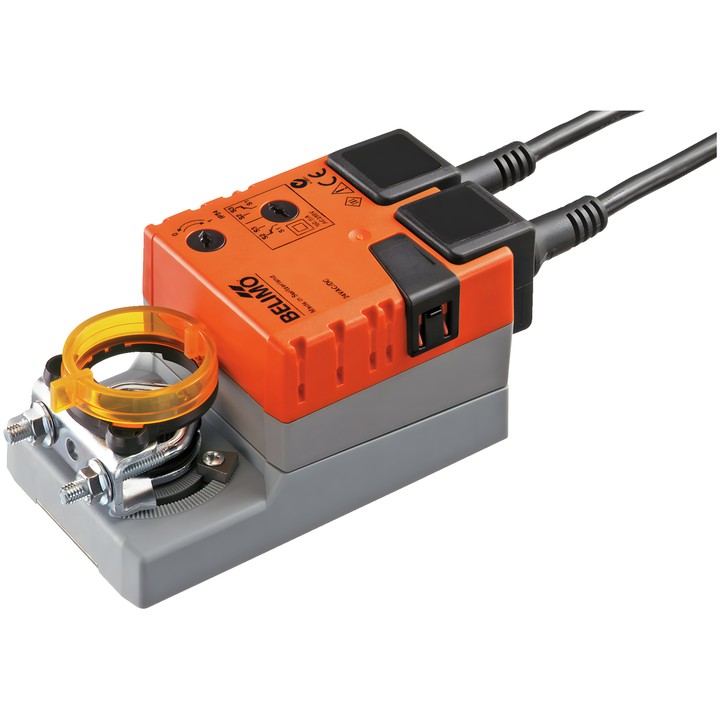

Belimo TMC24A-S damper actuator

Actuator designed to position air dampers in technical building systems. According to the technical data sheet, it is intended for dampers with an area of up to approx. 0.4 m².

Key features and specifications

  • Torque: 2 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
  • Control: Close/Open, 3-point; motor operating time: 35 s / 90°.
  • Integrated auxiliary switch: 1x SPDT, with adjustable switching position 0...100%.
  • Direction of movement selected by switch: 0 (counter-clockwise) / 1 (clockwise).
  • Rotation angle: max. 95°; adjustable mechanical stops on both sides and mechanical position indicator.
  • Manual override by push-button, with locking option.
  • Mechanical connection: universal shaft clamp 6...20 mm.
  • Power/control and auxiliary switch connections: separate 1 m cables, 3x 0.75 mm².
  • Power consumption during movement: 1.5 W; at rest: 0.2 W; sizing power: 2.5 VA.
  • IEC/EN protection rating: IP54; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    TMC24A-S
  • EAN13
    7630498115769

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Cable 1 m, 3x 0.75 mm²
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    2.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    35 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Auxiliary contacts
    1x SPDT
  • Torque
    2 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (1.5MB)

Instrukcja montażu

Download (507.41KB)

Techniczna karta katalogowa – TMC24A-S

Download (1.5MB)

EU Declaration of Conformity – TMC24A-S

Download (32.76KB)

Environmental Declaration – TM..

Download (72.21KB)
