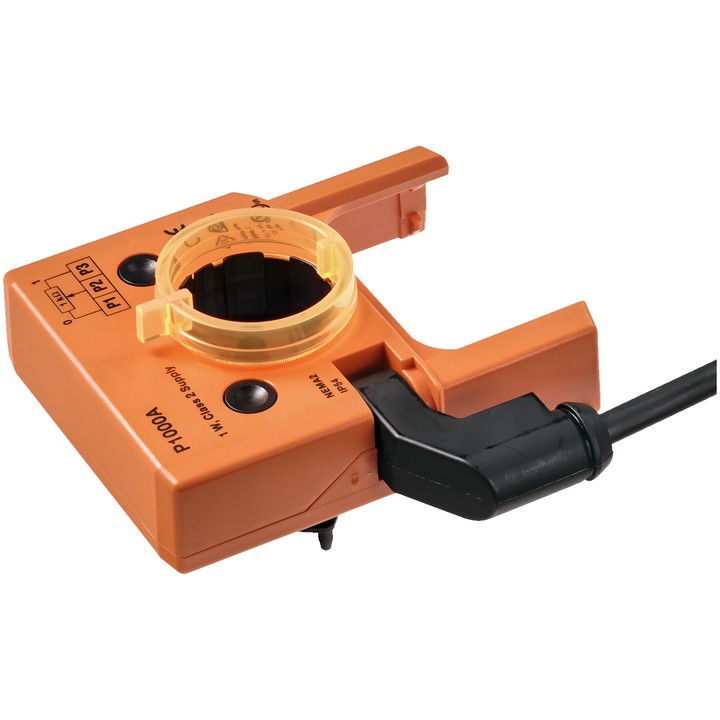

Belimo P1000A - feedback potentiometer

Belimo P1000A feedback potentiometer

The clip-on potentiometer transmits the position of a damper actuator or rotary actuator. It is intended, among other applications, for modulating damper control with controllers using constant feedback and for indicating damper position.

Key technical data

• Nominal resistance: 1 kΩ; tolerance: ±5%.
• Maximum load: 1 W; linearity: ±2%.
• Resolution: Min. 1%; residual resistance: Max. 5% on both sides.
• Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].
• Weight: 0.18 kg.

Mounts directly on the actuator shaft clamp of a damper actuator or on the position indicator of a rotary actuator.
