Belimo CH24-SR-L100.2 - modulating linear actuator

Belimo CH24-SR-L100.2 - modulating linear actuator

Belimo
zł1,189.41
VAT included
zł967.00 tax excluded

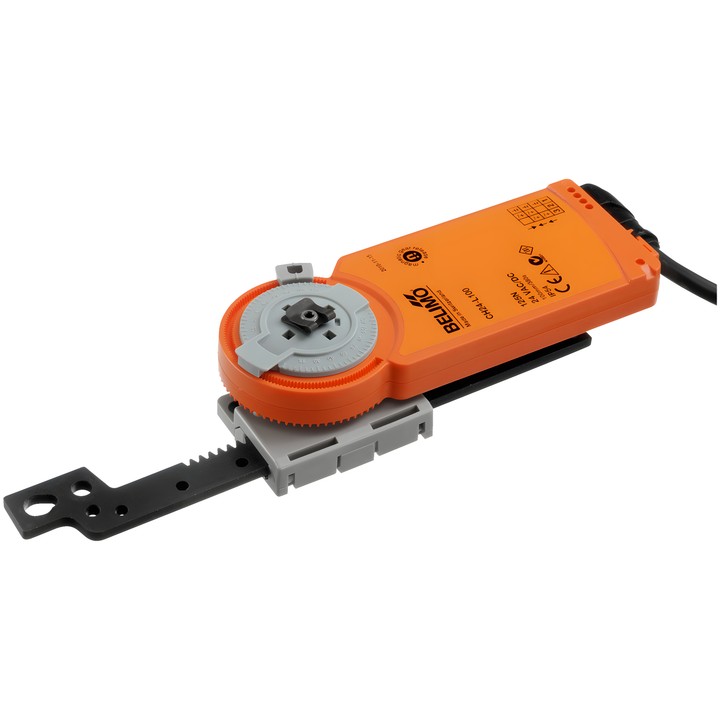

Belimo CH24-SR-L100.2 linear actuator with a force of 125 N, AC/DC 24 V supply and 2...10 V modulating control. The running time is 380 s / 100 mm, and the stroke is 100 mm.

2...10 V position feedback, manual override using a magnet and IP54 protection rating. Multipack of 20 pcs.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CH24-SR-L100.2 linear actuator

Modulating actuator for controlling dampers and slide valves in technical building systems. The maximum stroke is 100 mm; according to the documentation, it can be adjusted in 20 mm increments.

Key specifications

  • Motor force: 125 N.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control range Y: 2...10 V; feedback signal U: 2...10 V.
  • Motor running time: 380 s / 100 mm.
  • Stroke: 100 mm; maximum stroke adjustable in 20 mm increments.
  • Direction of movement at Y = 0 V: retracted.
  • Power consumption during operation: 1 W; at rest: 0.5 W; for cable sizing: 1.5 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Manual override: using a magnet.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].
  • Multipack: 20 pcs.

  • Brand
    Belimo
  • Reference
    CH24-SR-L100.2

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    1.5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    125 N
  • Manual override
    Using a magnet
  • Stroke
    100 mm
  • Running time (motor)
    380 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Y = 0 V: retracted
