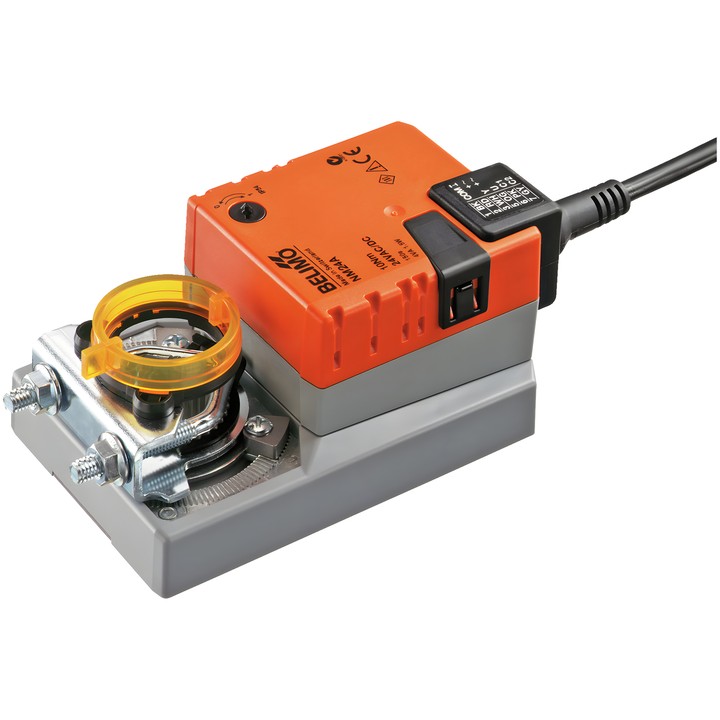

Belimo NM24A - damper actuator

Belimo NM24A - damper actuator

Belimo
zł561.61
VAT included
zł456.59 tax excluded

Belimo NM24A damper actuator with a torque of 10 Nm, powered by AC/DC 24 V. Supports Open/Close and 3-point control; running time is 150 s / 90°.

Equipped with a universal clamp for 8...26.7 mm, a manual override button with locking facility, and an IP54-rated housing.

Delivery in approx. 14 days
Share

Belimo NM24A – damper actuator

Actuator designed to control air dampers in stationary heating, ventilation and air-conditioning systems. According to the technical datasheet, it is intended for dampers with an area of up to approx. 2 m².

Key features and specifications

  • Torque: 10 Nm; rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
  • Control: Open/Close, 3-point; motor running time: 150 s / 90°.
  • Direction of rotation selected using switch 0 (counterclockwise) / 1 (clockwise).
  • Angle of rotation: max. 95°, with the option to limit movement from both sides using adjustable mechanical stops.
  • Manual override by button with locking facility; mechanical, clip-on position indicator.
  • Mechanical connection: universal clamp 8...26.7 mm; power and control connection: cable 1 m, 3x 0.75 mm².
  • Power consumption during operation: 1.5 W; at rest: 0.2 W; sizing power: 3.5 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NM24A
  • EAN13
    7630498113086

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    3.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm

Techniczna karta katalogowa

Download (1.5MB)

Instrukcja montażu

Download (536.21KB)

EU Declaration of Conformity – NM24A

Download (47.89KB)

Environmental Declaration – NM..

Download (72.35KB)
