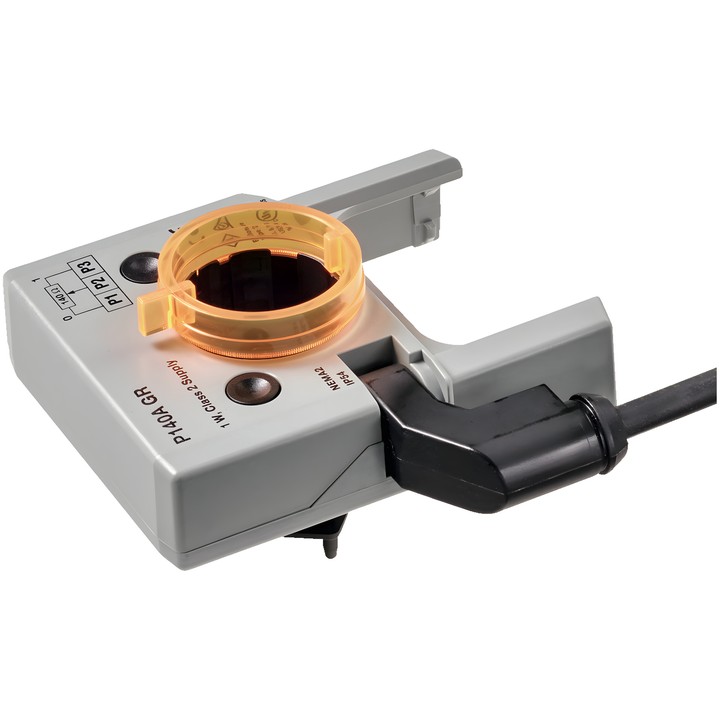

Belimo P140A GR - 140 Ω feedback potentiometer

Name: Belimo P140A GR - 140 Ω feedback potentiometer
Brand: Belimo
SKU: P140A GR
Price: 688.80 PLN
Availability: OutOfStock

Belimo

zł688.80

VAT included

zł560.00 tax excluded

Clip-on feedback potentiometer for damper actuators and rotary actuators. Nominal resistance 140 Ω; grey housing.

Connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free). Protection rating IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo P140A GR – feedback potentiometer

Clip-on potentiometer for damper actuators and rotary actuators. The carrier plate transfers the position from the shaft clamp of the damper actuator or the position indicator of the rotary actuator to the potentiometer.

Key features and technical data

Nominal resistance: 140 Ω; tolerance: ±5%.
Power rating: Max. 1 W; linearity: ±2%; resolution: Min. 1%.
Residual resistance: Max. 5% on both sides.
Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].
Cover and housing base colour: grey.
Weight: 0.20 kg.

The potentiometer can be used with controllers with fixed feedback for modulating damper control. The documentation also specifies its use for indicating damper position and as a setpoint device for actuators operating in parallel.
