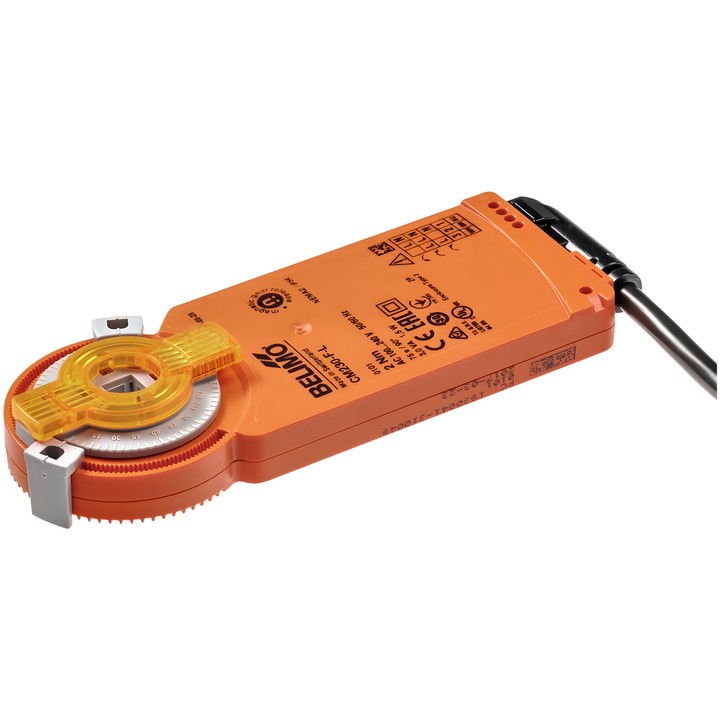

Belimo CM230-F-L - damper actuator

Belimo CM230-F-L is an actuator designed to control air dampers in building services installations. According to the technical data sheet, it is intended for dampers with an area of up to approx. 0.4 m².

Key features and specifications

• Torque: 2 Nm; control: 3-point Close/Open.
• Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
• Motor running time: 75 s / 90°; direction of movement: counter-clockwise (ccw).
• Angle of rotation: 0...287.5°; angle adjustment using mechanical end stops.
• Mechanical connection: form-fit connection measuring 8x8 mm.
• Power and control connection: 1 m cable, 3x 0.75 mm².
• Power consumption during movement: 1.5 W; at rest: 1 W; for wire sizing: 3 VA.
• Manual adjustment using a magnet and a mechanical position indicator.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
• Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when it reaches the end stop. A Z-ARCM anti-rotation clip is included.
