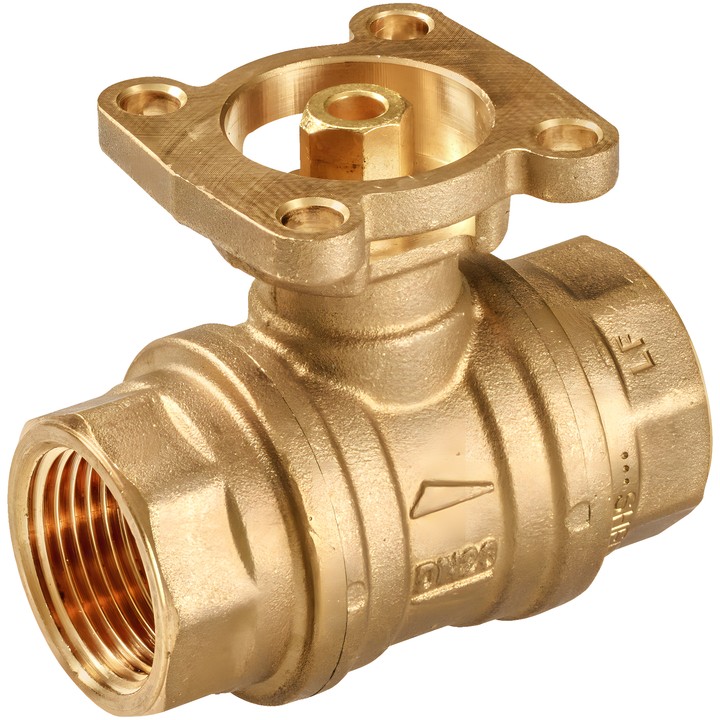

Belimo R215PW-N - 2-way ball valve for drinking water

Name: Belimo R215PW-N - 2-way ball valve for drinking water
Brand: Belimo
SKU: R215PW-N
Price: 274.87 PLN
Availability: BackOrder

Belimo

zł274.87

VAT included

zł223.47 tax excluded

Belimo R215PW-N is a 2-way, on/off ball valve for drinking water installations. It has an Rp 1/2" female threaded connection, DN 15, PN 40 and Kvs 16 m³/h.

The medium temperature is 5...100°C [41...212°F], and the closing pressure is ∆ps 1600 kPa.

Delivery in approx. 14 days

Belimo R215PW-N – ball valve for drinking water

2-way on/off valve designed for fixed drinking water installations. The valve is operated by a rotary actuator controlled by an on/off signal.

Key features

Connection: Rp 1/2" female thread in accordance with ISO 7-1; DN 15, PN 40.
Kvs: 16 m³/h.
Medium temperature: 5...100°C [41...212°F].
Closing pressure: ∆ps 1600 kPa; maximum differential pressure: ∆pmax 200 kPa (DN 15...25).
Tightness: bubble-tight, leakage rate class A.
Valve body: lead-free, dezincification-resistant brass (CW511L) (ISO 6509).
Stem seal: EPDM; seat: PTFE.
Drinking water certificates: ACS, DVGW, KIWA, PZH, WRAS, ÜA.

Installation and operating instructions

Installation is permitted from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted. The valve must be operated at least once a week.
