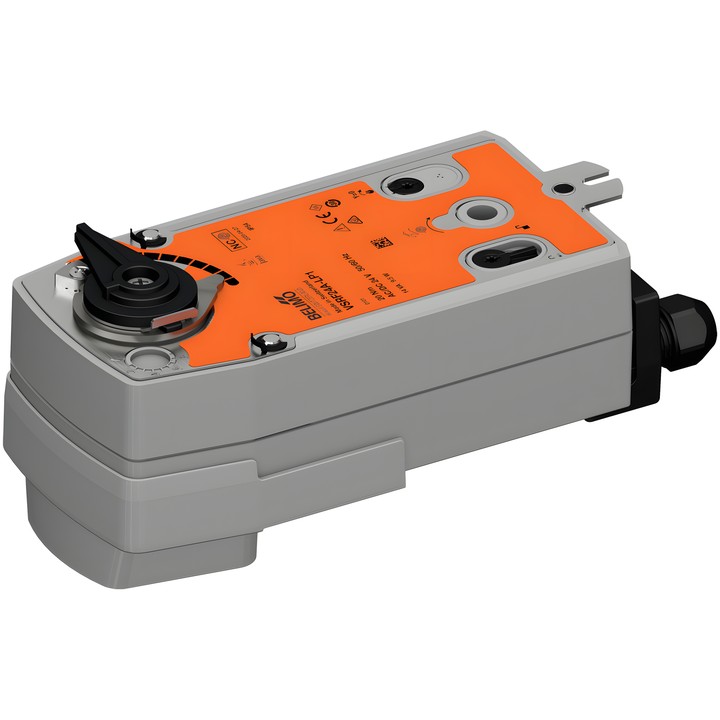

Belimo VSRF24A-LP1 - rotary actuator for ball valves

Name: Belimo VSRF24A-LP1 - rotary actuator for ball valves
Brand: Belimo
SKU: VSRF24A-LP1
Price: 3561.82 PLN
Availability: BackOrder

Belimo

zł3,561.82

VAT included

zł2,895.79 tax excluded

Rotary actuator for ball valves with NC fail-safe function, 20 Nm torque and AC/DC 24 V supply. Supports modulating, communicative and hybrid control, as well as communication via Cloud, BACnet/IP and Modbus TCP.

Motor running time is 90 s / 90°, and the Y operating range is 2...10 V. The device has an RJ45 socket and enables conversion of signals from two sensors.

Delivery in approx. 14 days

Belimo VSRF24A-LP1 rotary actuator

Actuator designed for ball valves. When the power supply is disconnected, the fail-safe function sets the valve to the NC, closed position (A – AB = 0%); for valves with an L-port, the documentation specifies A – AB = 100%.

Key features and parameters

Motor and fail-safe function torque: 20 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Power consumption: 9.5 W during operation, 3.5 W at rest; cable sizing power: 14 VA.
Y operating range: 2...10 V; adjustable Y operating range: 0.5...10 V.
Motor running time: 90 s / 90°; adjustable: 40...150 s. Fail-safe function running time: <20 s @ -20...50°C, <60 s @ -30°C.
Communication: Cloud, BACnet/IP, Modbus TCP; Ethernet 10/100 Mbit/s, TCP/IP and integrated web server.
Connection of two sensors and conversion of their signals for the higher-level system.
Manual operation with a crank and locking switch; mechanical rotation angle stops and mechanical position indicator.
Power and control connection: 1 m cable, 6x 0.5 mm²; Ethernet connection: RJ45 socket.
Protection rating: IP40; IP54 when a protective cover or RJ45 socket protective gland is used.
