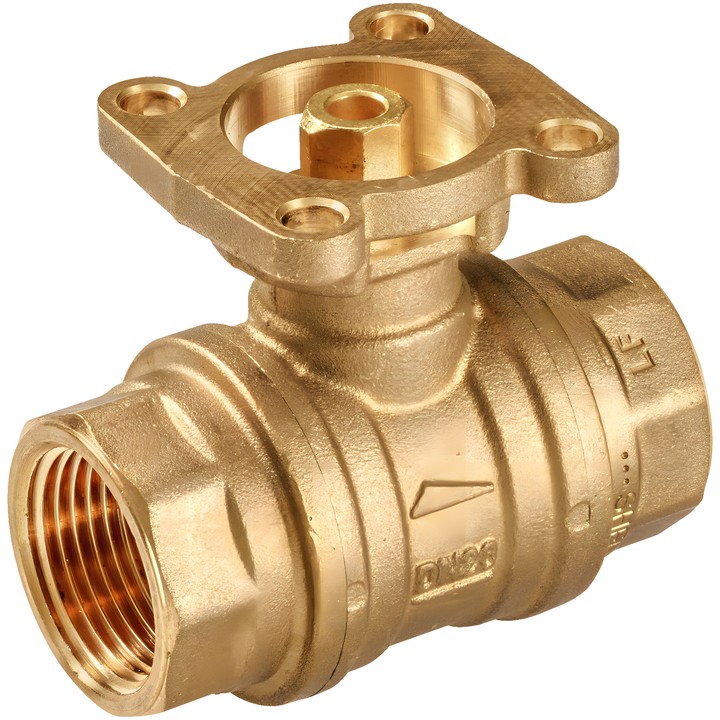

Belimo R220PW-P - 2-way ball valve for drinking water

Name: Belimo R220PW-P - 2-way ball valve for drinking water
Brand: Belimo
SKU: R220PW-P
Price: 307.17 PLN
Availability: BackOrder

Belimo

zł307.17

VAT included

zł249.73 tax excluded

Belimo R220PW-P is a 2-way open/close ball valve for drinking water installations. It has an Rp 3/4" female threaded connection, DN 20, PN 40 and Kvs 32 m³/h.

The medium temperature is 5...100°C [41...212°F]. The body is made of lead-free, dezincification-resistant CW511L brass (ISO 6509).

Delivery in approx. 14 days

Belimo R220PW-P – ball valve for drinking water

2-way open/close ball valve with female thread, designed for stationary drinking water installations. The valve is operated by a rotary actuator controlled by an open/close signal.

Key technical data

DN 20; Rp 3/4" female thread in accordance with ISO 7-1; PN 40.
Kvs 32 m³/h.
Medium: drinking water; medium temperature: 5...100°C [41...212°F].
Closing pressure: ∆ps 1600 kPa; maximum differential pressure for DN 20: ∆pmax 200 kPa.
Tightness: bubble-tight, leakage class A.
Drinking water approvals: ACS, DVGW, KIWA, PZH, WRAS, ÜA.
Body: lead-free, dezincification-resistant CW511L brass (ISO 6509); stem seal: EPDM; seat: PTFE.
Rotation angle: 90°; installation permitted from vertical to horizontal relative to the stem, but not with the stem pointing downwards.

According to the documentation, the valve must be operated at least once a week to avoid compromising the quality and functionality of the drinking water.
