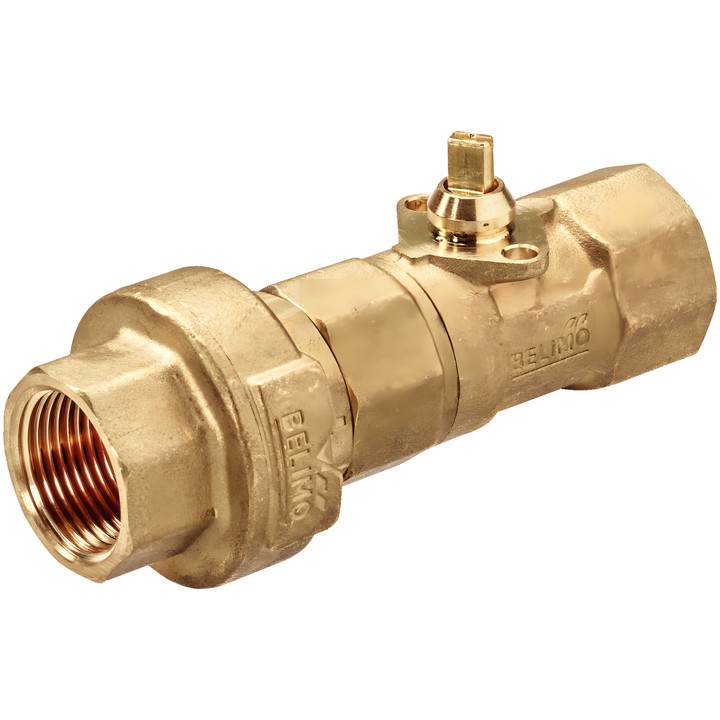

Belimo C215QFLH-F0 - 2-way PI flow-limiting valve

Name: Belimo C215QFLH-F0 - 2-way PI flow-limiting valve
Brand: Belimo
SKU: C215QFLH-F0
Price: 608.85 PLN
Availability: OutOfStock

Belimo

zł608.85

VAT included

zł495.00 tax excluded

2-way PI flow-limiting valve for closed water systems. DN 15, Rp 1/2" female thread, PN 25, V'nom 940 l/h.

Designed for on/off control on the water side of fan coil units and heating and cooling ceilings. Medium temperature: 2...80°C [36...176°F].

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C215QFLH-F0

2-way PI flow-limiting valve for closed water systems. The integrated flow limiter maintains a constant flow when the valve is open to an angle of 90° and at a differential pressure of 20...280 kPa. The valve is designed for on/off control on the water side of fan coil units and heating and cooling ceilings.

Key features

DN 15, PN 25; Rp 1/2" female-thread connection.
Nominal flow V'nom: 940 l/h (0.26 l/s).
Medium: water; medium temperature: 2...80°C [36...176°F].
Differential pressure: ∆p 20...280 kPa; closing pressure: 520 kPa. 50 kPa is specified for quiet operation.
Leak-tightness: bubble-tight, leakage rate class A (EN 12266-1).
Valve body: brass; closing element: chrome-plated brass.
Rotation angle: 90°; the valve opens counterclockwise and closes clockwise.

Installation instructions

Installation is permitted from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body.
