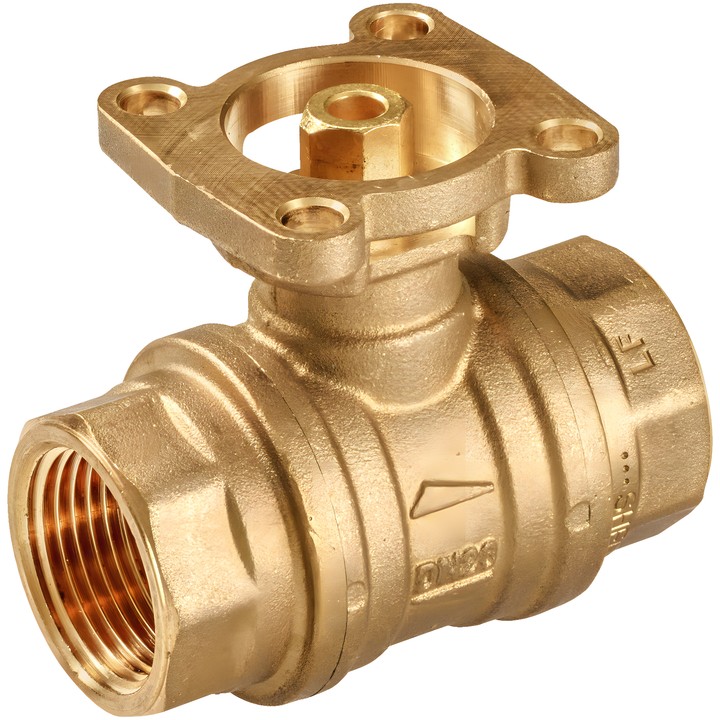

Belimo R232PW-Q - 2-way ball valve for drinking water
Price:
zł619.39
VAT included
zł503.57 tax excluded
Belimo R232PW-Q is a 2-way Open/Close ball valve for drinking water installations. It has DN 32, Rp 1 1/4" female thread, PN 25 and Kvs 63 m³/h.
The fluid temperature is 5...100°C [41...212°F]. The body is made of CW511L brass, lead-free and resistant to dezincification (ISO 6509).
Belimo R232PW-Q – ball valve for drinking water
2-way Open/Close ball valve with female thread, designed for fixed drinking water installations. It opens by turning anticlockwise and closes by turning clockwise.
Key features and specifications
- DN 32; Rp 1 1/4" connection, female thread according to ISO 7-1.
- PN 25; Kvs 63 m³/h.
- Fluid: drinking water; fluid temperature: 5...100°C [41...212°F].
- Closing pressure: ∆ps 1600 kPa; differential pressure for DN 32: ∆pmax 170 kPa.
- Rotation angle: 90°.
- Tightness: bubble-tight, leakage rate class A.
- Drinking water certifications: ACS, DVGW, KIWA, PZH, WRAS, ÜA.
- Body and stem: CW511L brass, lead-free and resistant to dezincification (ISO 6509); closing element: chrome-plated CW511L brass; stem seal: EPDM; seat: PTFE.
Installation instructions
Permitted installation position: from vertical to horizontal in relation to the stem. Do not install with the stem pointing downwards. The valve must be operated at least once a week, as recommended by the manufacturer.
-
Brand
-
ReferenceR232PW-Q
-
EAN137630498110832
-
Kvs63 m³/h
-
MediumDrinking water
-
Pattern2-way
-
Fluid temperature5...100°C [41...212°F]
-
Closing pressure1600 kPa
-
Permissible leakageBubble-tight, leakage class A
-
Pipe connectionInternal thread
-
Drinking water certificationACS DVGW KIWA PZH WRAS ÜA
