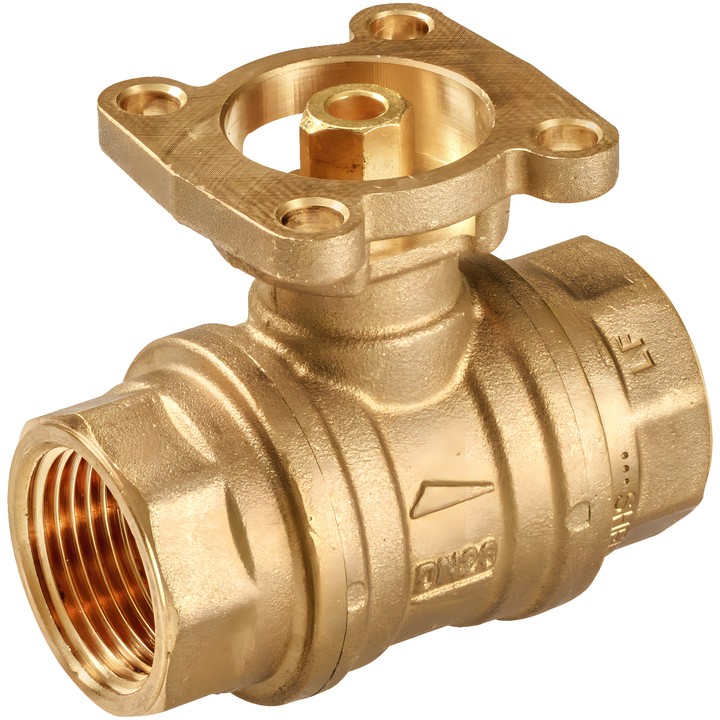

Belimo R240PW-R - 2-way ball valve for drinking water

Name: Belimo R240PW-R - 2-way ball valve for drinking water
Brand: Belimo
SKU: R240PW-R
Price: 759.35 PLN
Availability: BackOrder

Belimo

zł759.35

VAT included

zł617.36 tax excluded

2-way open/close ball valve Belimo R240PW-R for drinking water installations. DN 40, Rp 1 1/2" female thread, PN 25 and Kvs 100 m³/h.

Medium temperature: 5...100°C [41...212°F]. CW511L brass body, lead-free and dezincification-resistant (ISO 6509).

Delivery in approx. 14 days

Belimo R240PW-R – ball valve for drinking water

2-way open/close ball valve for stationary drinking water installations. The valve is operated by a rotary actuator controlled by an open/close signal.

Key features and specifications

Nominal diameter: DN 40; nominal pressure: PN 25.
Connection: Rp 1 1/2" female thread in accordance with ISO 7-1.
Flow coefficient: Kvs 100 m³/h.
Medium: drinking water; medium temperature: 5...100°C [41...212°F].
Closing pressure: ∆ps 1600 kPa; maximum differential pressure for DN 32...40: ∆pmax 170 kPa.
Leakage class A – bubble-tight valve.
Body and stem: lead-free CW511L brass, resistant to dezincification (ISO 6509); closing element made of the same brass, chrome-plated.
Stem seal: EPDM; seat: PTFE.
Drinking water certifications: ACS, DVGW, KIWA, PZH, WRAS, ÜA.

Installation and operating instructions

Installation is permitted with the stem from vertical to horizontal; installation with the stem pointing downwards is not permitted. The valve must be operated at least once a week to avoid affecting the quality and functionality of the drinking water.
