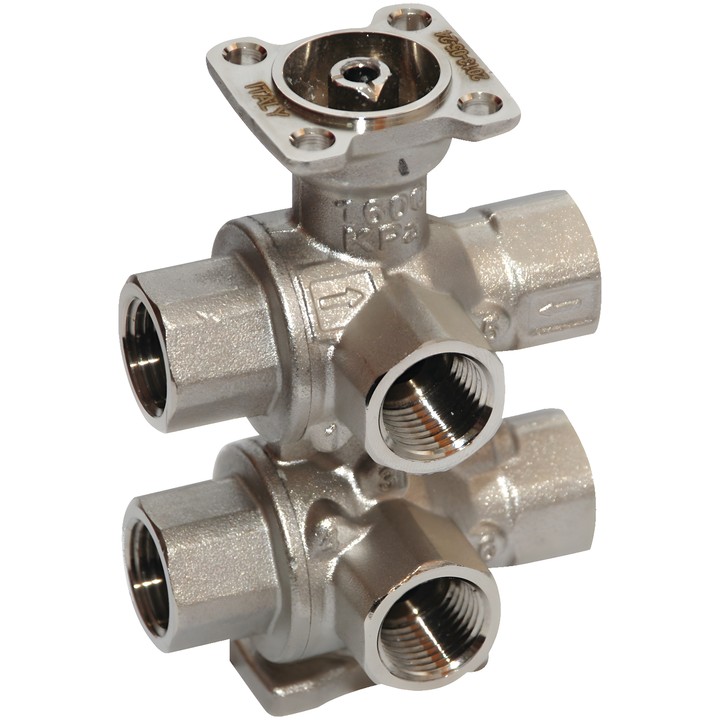

Belimo R3015-1-P25-B2 - 6-way control valve

Name: Belimo R3015-1-P25-B2 - 6-way control valve
Brand: Belimo
SKU: R3015-1-P25-B2
Price: 592.16 PLN
Availability: BackOrder

Belimo

zł592.16

VAT included

zł481.43 tax excluded

Belimo R3015-1-P25-B2 6-way control valve with characterised control, DN 15, PN 16, with Rp 1/2" female thread. Kvs (sequence 1): 1 m³/h; Kvs (sequence 2): 0.25 m³/h.

Designed to control water-side flow through heating and cooling elements in closed water systems. Fluid temperature: 6...80°C [43...176°F].

Delivery in approx. 14 days

Belimo R3015-1-P25-B2 – 6-way control valve

Control valve with characterised control for switching or regulating water-side flow through heating and cooling elements in closed water systems. The two sequences are operated by a rotary actuator with a 90° angle of rotation.

Key features and parameters

DN 15, PN 16; Rp 1/2" female threaded connection.
Kvs (sequence 1): 1 m³/h; Kvs (sequence 2): 0.25 m³/h.
Fluid: water, water with max. 50% vol. glycol; fluid temperature: 6...80°C [43...176°F].
Differential pressure: ∆pmax 100 kPa; closing pressure: 350 kPa. Quiet operation: Δpv100 <50 kPa.
Linear flow characteristic; leakage class A (EN 12266-1), bubble-tight valve.
Sequence 1: 0...30°; dead zone: 30...60°; sequence 2: 60...90°.
Integrated pressure compensation function operates in the closed position (45°), while keeping sequences 1 and 2 separate.
Nickel-plated brass body.

Permitted installation: from vertical to horizontal relative to the spindle. Installation with the spindle pointing downwards is not permitted.
