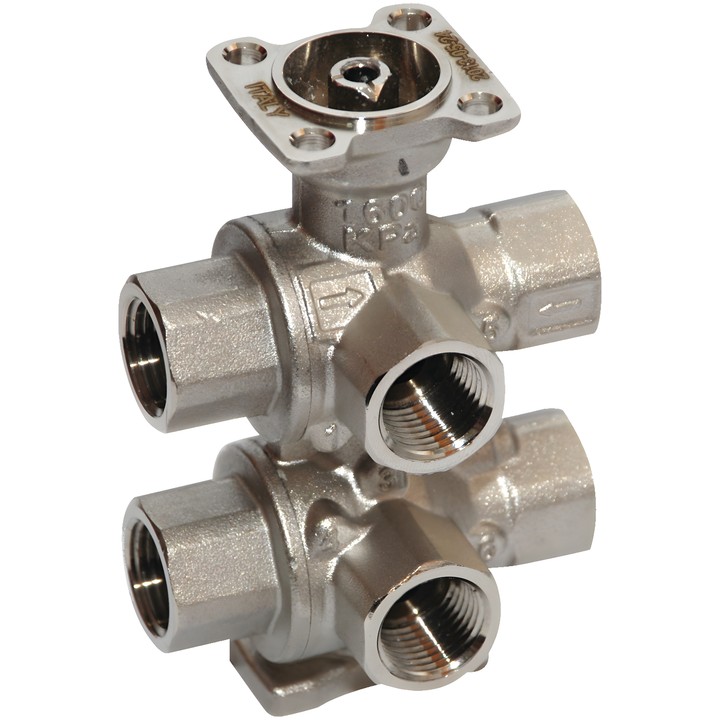

Belimo R3015-1P8-1-B2 - 6-way control valve

Name: Belimo R3015-1P8-1-B2 - 6-way control valve
Brand: Belimo
SKU: R3015-1P8-1-B2
Price: 592.16 PLN
Availability: BackOrder

Belimo

zł592.16

VAT included

zł481.43 tax excluded

Belimo R3015-1P8-1-B2 6-way control valve with Rp 1/2" female thread, DN 15 and PN 16. Kvs (sequence 1) is 1.8 m³/h, and Kvs (sequence 2) is 1 m³/h.

Designed for water-side control of heating and cooling elements in closed water systems. It has an integrated pressure compensation function and a dead zone separating the sequences.

Delivery in approx. 14 days

Belimo R3015-1P8-1-B2 – 6-way control valve

Valve with a control orifice for switching or water-side control of heating and cooling elements in closed water systems. The two sequences are operated by a rotary actuator with a rotation angle of 90°.

Key features and specifications

DN 15, PN 16; connection: Rp 1/2" female thread.
Kvs (sequence 1): 1.8 m³/h; Kvs (sequence 2): 1 m³/h.
Fluid: water or water with up to 50% by volume glycol; fluid temperature: 6...80°C [43...176°F].
Differential pressure: ∆pmax 100 kPa; closing pressure: 350 kPa. Quiet operation condition: Δpv100 <50 kPa.
Flow characteristic: linear; tightness: bubble-tight, leakage rate class A (EN 12266-1).
Nickel-plated brass body.
Sequence 1: 0...30° (recommended for cooling); dead zone: 30...60°; sequence 2: 60...90° (recommended for heating).
Integrated function for compensating pressure changes in the closed fluid, active when the valve is closed (45°).

Permitted mounting position: from vertical to horizontal relative to the stem; mounting with the stem pointing downwards is not permitted.
