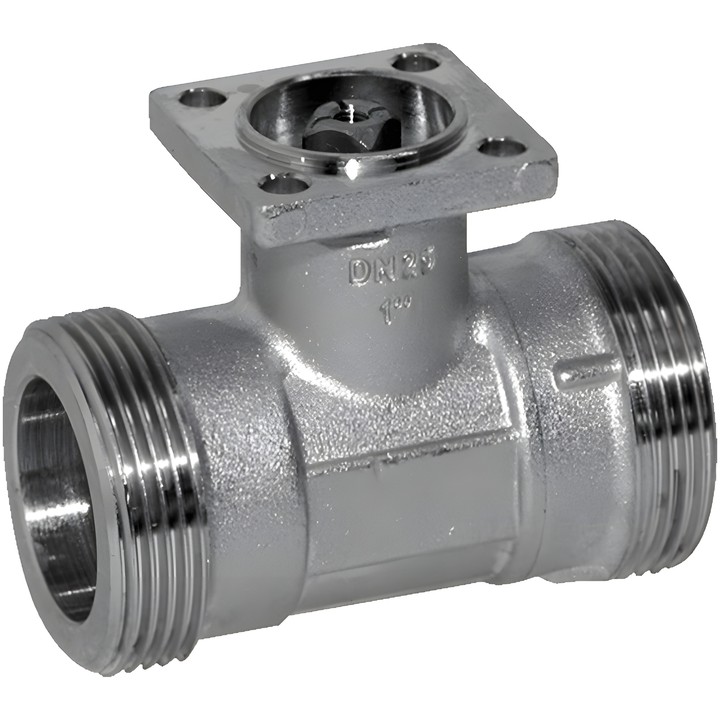

Belimo R412 - 2-way regulating ball valve

Name: Belimo R412 - 2-way regulating ball valve
Brand: Belimo
SKU: R412
Price: 322.41 PLN
Availability: BackOrder

Belimo

zł322.41

VAT included

zł262.12 tax excluded

Belimo R412 is a 2-way ball valve with a regulating orifice, DN 15, PN 40, with G 1" male thread. Kvs is 2.5 m³/h, and the permissible fluid temperature is -10...100°C [14...212°F].

Delivery in approx. 14 days

Belimo R412 – 2-way regulating valve

Valve with a regulating orifice for open and closed water systems and for water-side control in ventilation and heating systems. The integrated orifice provides an equal-percentage flow characteristic.

Key features

Nominal size DN 15; nominal pressure PN 40.
Connection: G 1" male thread, in accordance with ISO 228-1.
Kvs: 2.5 m³/h; maximum differential pressure ∆pmax: 200 kPa; closing pressure: 1400 kPa.
Fluid: water or water with up to 50% vol. glycol; fluid temperature: -10...100°C [14...212°F].
Flow characteristic: equal-percentage; tightness: bubble-tight, leakage class A.
Nickel-plated brass body; stainless steel closing element and stem.
Rotation angle: 90°; operating range: 15...90°.

At a fluid temperature of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may depend on the actuator type. Installation is permitted from the vertical to the horizontal position, but not with the stem pointing downwards.

Brand

Belimo
Reference

R412
EAN13

7630498108020

Kvs

2.5 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

-10...100°C [14...212°F]
Fluid temperature, note

At a fluid temperature of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for limitations.
Differential pressure

∆pmax 200 kPa
Closing pressure

1400 kPa
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
