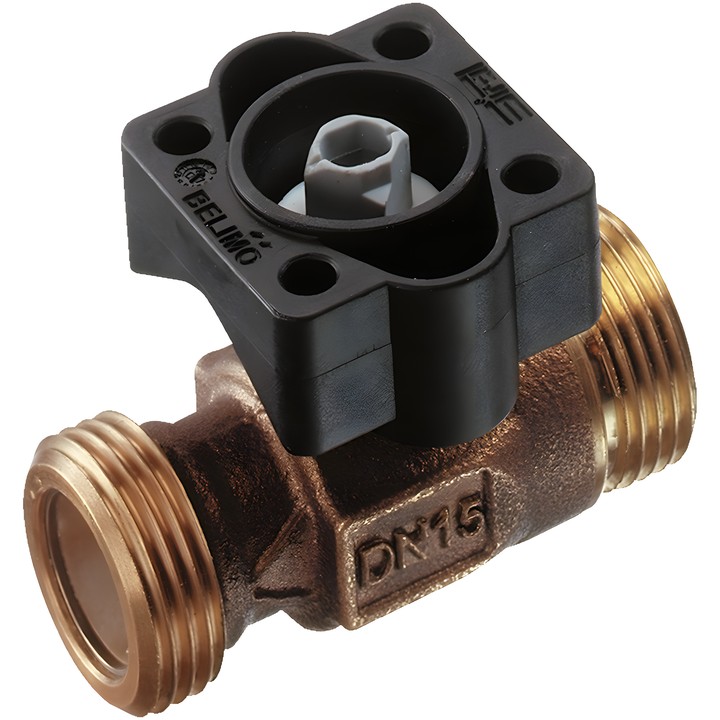

Belimo R412D - 2-way ball control valve

Name: Belimo R412D - 2-way ball control valve
Brand: Belimo
SKU: R412D
Price: 727.07 PLN
Availability: BackOrder

Belimo

zł727.07

VAT included

zł591.11 tax excluded

Belimo R412D is a 2-way ball control valve with a control orifice, DN 15, with G 1" male thread. Kvs 2.5 m³/h, PN 40, ps 2700 kPa.

Designed for open and closed water systems. Fluid temperature: 2...130°C [36...266°F].

Delivery in approx. 14 days

Belimo R412D – 2-way control valve

Ball valve with a control orifice and male thread, designed for open and closed water systems. The integrated orifice provides an equal-percentage flow characteristic.

Key features

Type: 2-way ball control valve, DN 15, PN 40.
Connection: G 1" male thread.
Kvs: 2.5 m³/h; ps: 2700 kPa.
Fluid: water and water with a maximum of 50% vol. glycol; drinking water on request.
Fluid temperature: 2...130°C [36...266°F].
Differential pressure: ∆pmax 400 kPa; closing pressure: 1400 kPa.
Flow characteristic: equal-percentage; tightness: bubble-tight, leakage class A.
Body: low-lead bronze (CuSn4Zn6Pb3).

The permissible fluid temperature may be limited depending on the actuator type; limitations are specified in the actuator data sheets.

Brand

Belimo
Reference

R412D
EAN13

7630498108037

Kvs

2.5 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

2...130°C [36...266°F]
Fluid temperature, note

The permissible medium temperature may be limited depending on the actuator type. The limitations can be found in the relevant actuator data sheets.
Differential pressure

∆pmax 400 kPa
Closing pressure

1400 kPa
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
