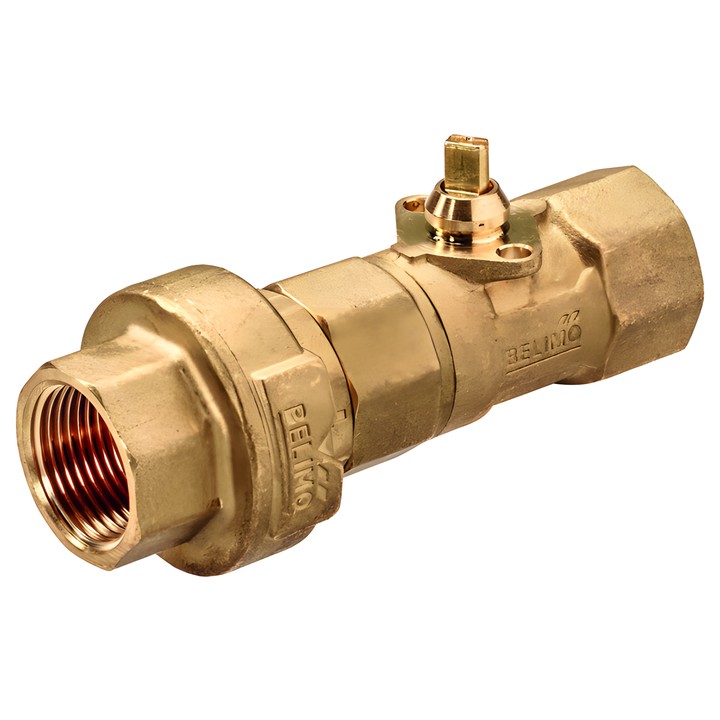

Belimo C215QFL-F0 - 2-way PI flow limiter ball valve

Name: Belimo C215QFL-F0 - 2-way PI flow limiter ball valve
Brand: Belimo
SKU: C215QFL-F0
Price: 314.77 PLN
Availability: BackOrder

Belimo

zł314.77

VAT included

zł255.91 tax excluded

Belimo C215QFL-F0 is a 2-way ball valve with a PI flow limiter (PIFLV), designed for closed-loop water systems. It has a DN 15, Rp 1/2" female threaded connection and a nominal flow V'nom 940 l/h.

The valve operates in Close/Open mode. The built-in limiter maintains a constant flow at a differential pressure of 20...280 kPa when the valve is open at 90°.

Delivery in approx. 14 days

Belimo C215QFL-F0 – PI flow limiter valve

2-way ball valve with female thread for closed-loop water systems. The product data sheet specifies use for Close/Open control of water circuits in fan coil units and chilled ceilings. The valve is operated by a rotary actuator controlled by a Close/Open signal.

Key parameters

Type: C215QFL-F0; DN 15; connection Rp 1/2"; PN 25.
Nominal flow V'nom: 940 l/h (0.26 l/s; 0.94 m³/h).
Medium: water; medium temperature: 2...60°C [36...140°F].
Differential pressure: 20...280 kPa; closing pressure ∆ps: 520 kPa.
The built-in flow limiter maintains a constant flow at a differential pressure of 20...280 kPa with the valve open at 90°.
Permissible leakage: bubble-tight, leakage rate A (EN 12266-1).
Rotation angle: 90°; valve body: brass.

Installation notes

Permitted mounting position: from vertical to horizontal relative to the axis; do not install with the axis pointing downwards. The flow direction must match the arrow on the housing. The data sheet specifies 50 kPa to ensure quiet operation.
