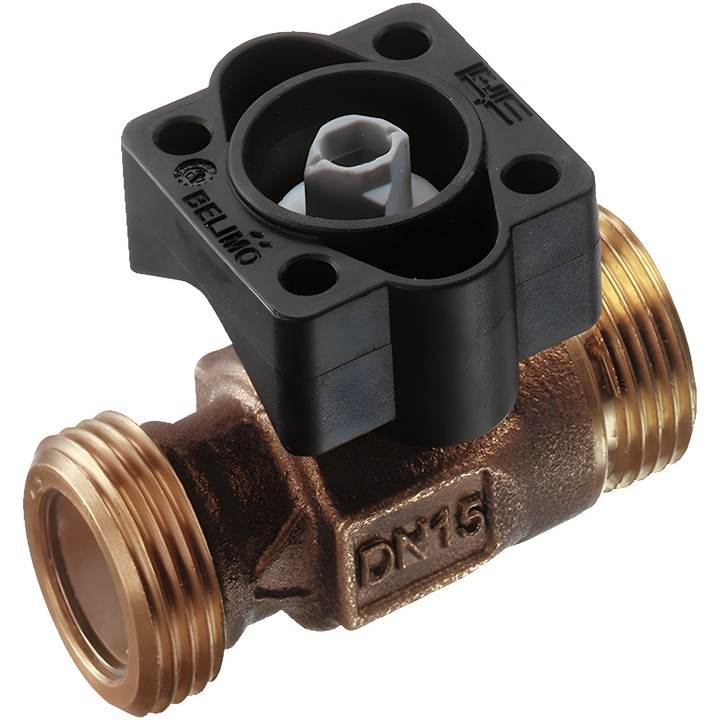

Belimo R415D - 2-way on/off ball valve

Name: Belimo R415D - 2-way on/off ball valve
Brand: Belimo
SKU: R415D
Price: 796.72 PLN
Availability: BackOrder

Belimo

zł796.72

VAT included

zł647.74 tax excluded

Belimo R415D is a 2-way on/off ball valve with a nominal diameter of DN 15 and G 1" male thread. Parameters: PN 40, ps 2700 kPa and Kvs 12 m³/h.

Suitable for water and water containing up to 50% by volume glycol. Fluid temperature: 2...130°C [36...266°F].

Delivery in approx. 14 days

Belimo R415D – 2-way ball valve

On/off ball valve with male thread. Opens when turned anticlockwise and closes when turned clockwise.

Key features and parameters

Nominal diameter: DN 15; connection: G 1" male thread, in accordance with ISO 228-1.
PN 40; ps 2700 kPa; Kvs 12 m³/h.
Fluid: water and water containing up to 50% by volume glycol.
Fluid temperature: 2...130°C [36...266°F]. The permissible temperature may depend on the actuator type.
Differential pressure: ∆pmax 800 kPa; closing pressure: 1400 kPa.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Rotation angle: 90°.
Body: low-lead red brass (CuSn4Zn6Pb3); closing element and stem: stainless steel.

Installation instructions

Permissible installation position: from vertical to horizontal relative to the stem. Do not install with the stem pointing downwards. Observe the flow direction indicated by the arrow on the body.

Brand

Belimo
Reference

R415D
EAN13

7630498108075

Kvs

12 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

2...130°C [36...266°F]
Fluid temperature, note

The permissible medium temperature may be limited depending on the actuator type. The limitations can be found in the relevant actuator data sheets.
Differential pressure

∆pmax 800 kPa
Closing pressure

1400 kPa
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
