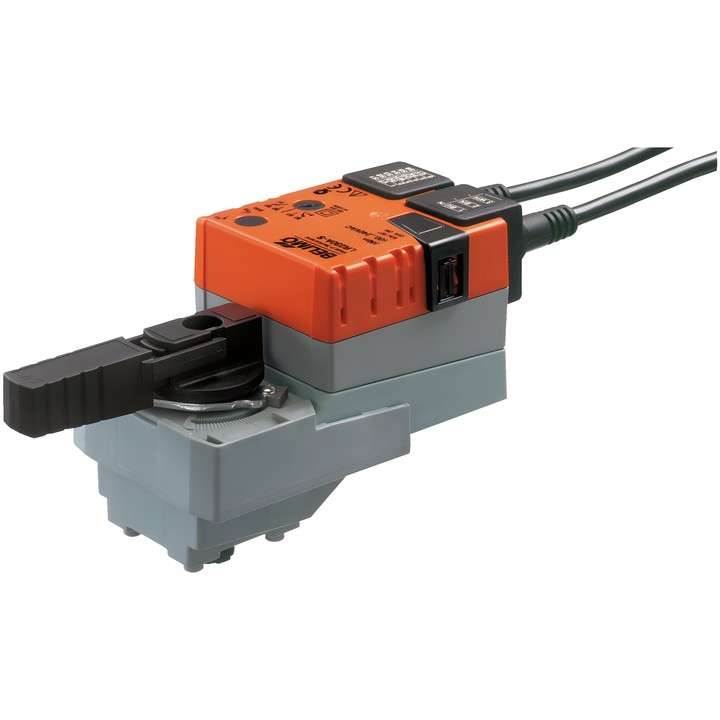

Belimo LR230A-S - rotary actuator for ball valves

Belimo LR230A-S – rotary actuator for ball valves

The actuator can be mounted directly on a ball valve using a single central screw. It features manual override by push-button, with the option to lock it, and mechanical angle-of-rotation limit stops.

Key features and specifications

• Motor torque: 5 Nm.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
• Control: Open/Close, 3-point.
• Motor running time: 90 s / 90°.
• Integrated auxiliary switch: 1x SPDT, switching point adjustment 0...100%.
• Power consumption during operation: 2 W; at rest: 0.5 W; for wire sizing: 4 VA.
• Power and control connection and auxiliary switch connection: each 1 m cable, 3x 0.75 mm².
• Mechanical, removable position indicator; adjustable angle of rotation with mechanical limit stops.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
