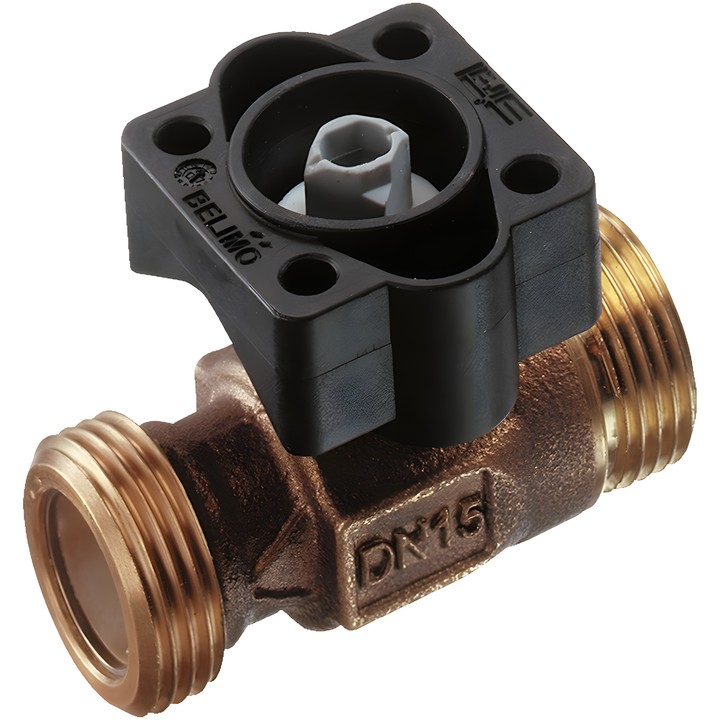

Belimo R417D - 2-way ball control valve

Name: Belimo R417D - 2-way ball control valve
Brand: Belimo
SKU: R417D
Price: 841.70 PLN
Availability: BackOrder

Belimo

zł841.70

VAT included

zł684.31 tax excluded

Belimo R417D is a 2-way ball control valve with a regulating orifice, DN 20, PN 40 and G 1 1/4" male thread. Kvs is 6.3 m³/h, and the medium temperature is 2...130°C [36...266°F].

Designed for water and water with up to 50% by volume glycol. It has an equal-percentage characteristic and leakage class A.

Delivery in approx. 14 days

Belimo R417D – 2-way control valve

Ball valve with a regulating orifice and male thread, designed to control flow in water systems. The integrated orifice provides an equal-percentage characteristic.

Key features and parameters

Type: 2-way; DN 20; PN 40.
Connection: G 1 1/4" male thread, in accordance with ISO 228-1.
Kvs: 6.3 m³/h; ps: 2700 kPa.
Medium: water, water with up to 50% by volume glycol.
Medium temperature: 2...130°C [36...266°F].
Differential pressure: ∆pmax 400 kPa; closing pressure: 1400 kPa.
Flow characteristic: equal-percentage; tightness: bubble-tight, leakage class A.
Body: low-lead bronze (CuSn4Zn6Pb3); closing element and spindle: stainless steel.

The permitted medium temperature may depend on the actuator type; limitations are specified in the relevant actuator data sheets.

Brand

Belimo
Reference

R417D
EAN13

7630498121975

Kvs

6.3 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

2...130°C [36...266°F]
Fluid temperature, note

The permissible medium temperature may be limited depending on the actuator type. The limitations can be found in the relevant actuator data sheets.
Differential pressure

∆pmax 400 kPa
Closing pressure

1400 kPa
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
