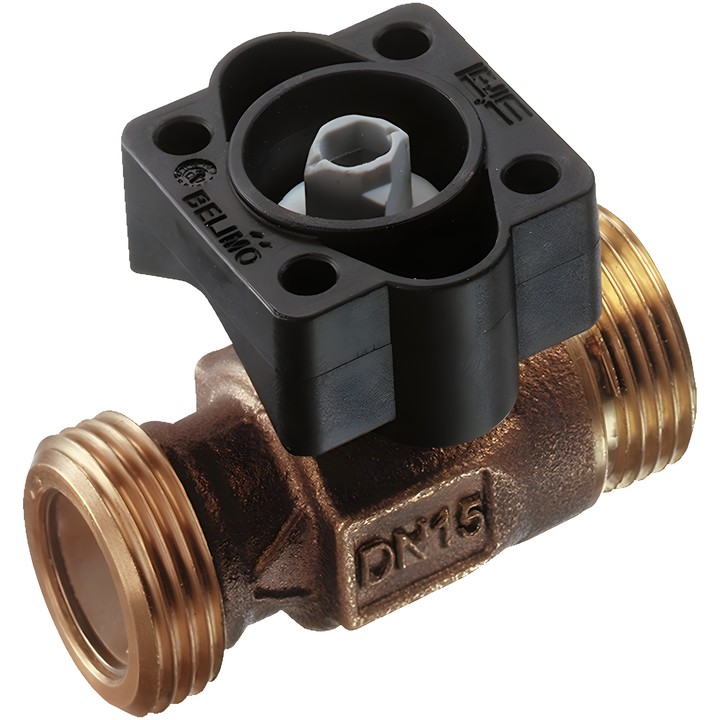

Belimo R419D - 2-way characterised control ball valve

Name: Belimo R419D - 2-way characterised control ball valve
Brand: Belimo
SKU: R419D
Price: 915.23 PLN
Availability: BackOrder

Belimo

zł915.23

VAT included

zł744.09 tax excluded

Belimo R419D is a 2-way characterised control ball valve with an integrated characterised disc, G 1 1/4" male thread, DN 20 and PN 40. Kvs is 16 m³/h, and the medium temperature is 2...130°C [36...266°F].

The valve has an equal-percentage characteristic and is bubble-tight, leakage class A.

Delivery in approx. 14 days

Belimo R419D – 2-way control valve

R419D is a characterised ball valve designed for open and closed water systems. The integrated characterised disc provides an equal-percentage flow characteristic.

Key technical data

DN 20; PN 40; G 1 1/4" male thread.
Kvs: 16 m³/h.
Medium: water, water with max. 50% vol. glycol.
Medium temperature: 2...130°C [36...266°F].
Differential pressure: ∆pmax 400 kPa; closing pressure: 1400 kPa.
Flow characteristic: equal-percentage.
Permissible leakage: bubble-tight, leakage class A.
Body: low-lead gunmetal (CuSn4Zn6Pb3).
Angle of rotation: 90°; operating range: 15...90°.

The permissible medium temperature may be limited depending on the actuator type. Restrictions are specified in the relevant actuator data sheets.

Brand

Belimo
Reference

R419D
EAN13

7630498108129

Kvs

16 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

2...130°C [36...266°F]
Fluid temperature, note

The permissible medium temperature may be limited depending on the actuator type. The limitations can be found in the relevant actuator data sheets.
Differential pressure

∆pmax 400 kPa
Closing pressure

1400 kPa
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
