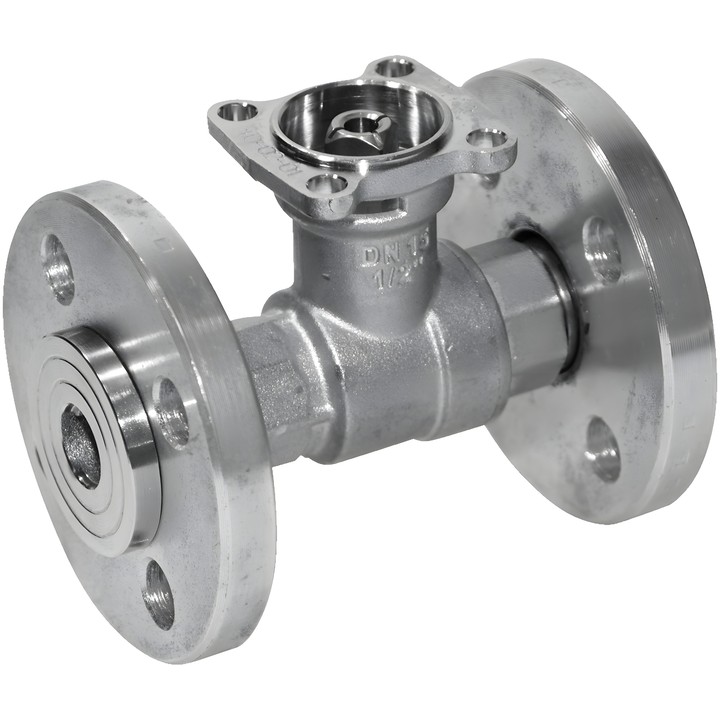

Belimo R6020R6P3-B1 - 2-way flanged control valve

Name: Belimo R6020R6P3-B1 - 2-way flanged control valve
Brand: Belimo
SKU: R6020R6P3-B1
Price: 954.43 PLN
Availability: BackOrder

Belimo

zł954.43

VAT included

zł775.96 tax excluded

Belimo R6020R6P3-B1 is a 2-way control valve with a regulating orifice, DN 20, PN 6, with a flanged connection. Kvs 6.3 m³/h; medium temperature -10...100°C [14...212°F].

Delivery in approx. 14 days

Belimo R6020R6P3-B1 – control valve

2-way valve with a regulating orifice for open and closed water systems and water-side control in ventilation and heating systems.

Key features and specifications

DN 20, PN 6; flanged connection.
Kvs 6.3 m³/h.
Medium: water or water with a maximum of 50% by volume glycol.
Medium temperature: -10...100°C [14...212°F].
Differential pressure: ∆pmax 100 kPa; closing pressure: 600 kPa.
Flow characteristic: equal-percentage, optimised over the opening range.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Body: nickel-plated brass; regulating orifice: ETFE; flange for DN 20: galvanised steel.
Rotation angle: 90°; operating range: 15...90°.

At a medium temperature of -10...2°C, stem heating or a valve neck extension is recommended. The permitted medium temperature may depend on the actuator type; limitations are specified in the relevant actuator data sheets.

Brand

Belimo
Reference

R6020R6P3-B1
EAN13

7630498108532

Kvs

6.3 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

-10...100°C [14...212°F]
Fluid temperature, note

For medium temperatures of -10...2°C, heating the shaft or extending the valve neck is recommended. The permissible medium temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for restrictions.
Differential pressure

∆pmax 100 kPa
Closing pressure

600 kPa
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

Flange
