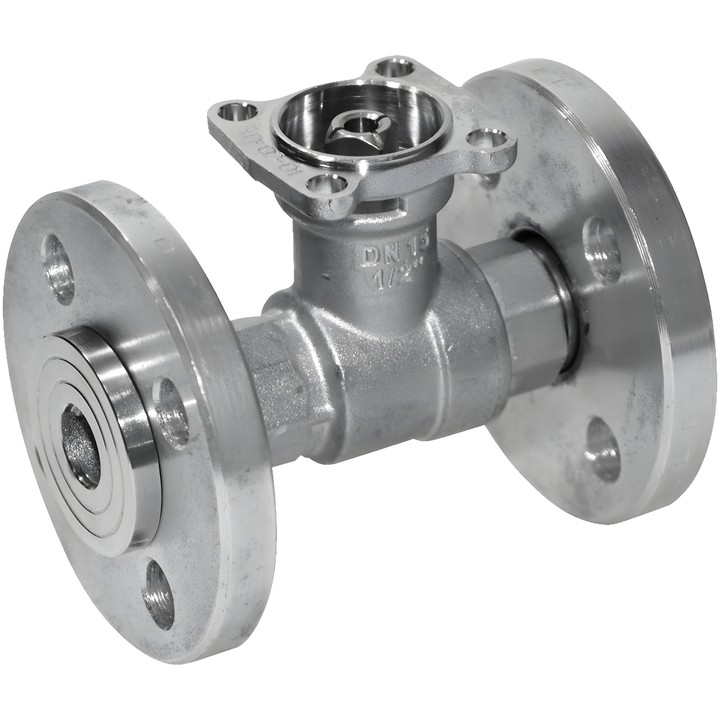

Belimo R6050R-B3 - 2-way on/off ball valve

Belimo R6050R-B3 - 2-way on/off ball valve

Belimo
zł1,506.05
VAT included
zł1,224.43 tax excluded

Belimo R6050R-B3 2-way ball valve with flanged connection, DN 50, PN 6 and Kvs 49 m³/h. Designed for shut-off and on/off control in water systems.

Medium: water or water with a maximum of 50% vol. glycol. Medium temperature: -10...100°C [14...212°F].

Delivery in approx. 14 days
Share

Belimo R6050R-B3 – 2-way ball valve

Flanged on/off ball valve for open and closed water systems. Used to shut off flow on the water side and provide on/off control in ventilation and heating systems.

Key technical data

  • Pattern: 2-way; DN 50; PN 6.
  • Pipe connection: flange in accordance with EN 1092-1/4.
  • Kvs: 49 m³/h.
  • Medium: water, water with a maximum of 50% vol. glycol.
  • Medium temperature: -10...100°C [14...212°F].
  • Differential pressure: ∆pmax 100 kPa; closing pressure: 600 kPa.
  • Leakage: bubble-tight, leakage rate A (EN 12266-1).
  • Rotation angle: 90°. The valve opens anticlockwise and closes clockwise.
  • Body: nickel-plated brass; closing element: chrome-plated brass; flange: aluminium.
  • Permitted installation position: from vertical to horizontal relative to the valve axis; installation with the axis pointing downwards is not permitted.

At a medium temperature of -10...2°C, heating the valve stem or extending the valve neck is recommended. The permitted medium temperature may depend on the actuator type; limitations are specified in the relevant actuator data sheets.

  • Brand
    Belimo
  • Reference
    R6050R-B3
  • EAN13
    7630498108624

  • Kvs
    49 m³/h
  • Medium
    Water, water with up to 50% vol. glycol.
  • Pattern
    2-way
  • Fluid temperature
    -10...100°C [14...212°F]
  • Fluid temperature, note
    For medium temperatures of -10...2°C, heating the shaft or extending the valve neck is recommended. The permissible medium temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for restrictions.
  • Differential pressure
    ∆pmax 100 kPa
  • Closing pressure
    600 kPa
  • Permissible leakage
    Bubble-tight, leakage class A
  • Pipe connection
    Flange

Techniczna karta katalogowa

Download (1.18MB)

Instrukcja montażu

Download (507.05KB)

Techniczna karta katalogowa – R6..R-B..

Download (1.18MB)

EU Declaration of Conformity – R20.., R30.., R60..R.., R70..R.., DN15...50

Download (64.14KB)

Environmental Declaration – R6.. DN15-50

Download (70.21KB)
