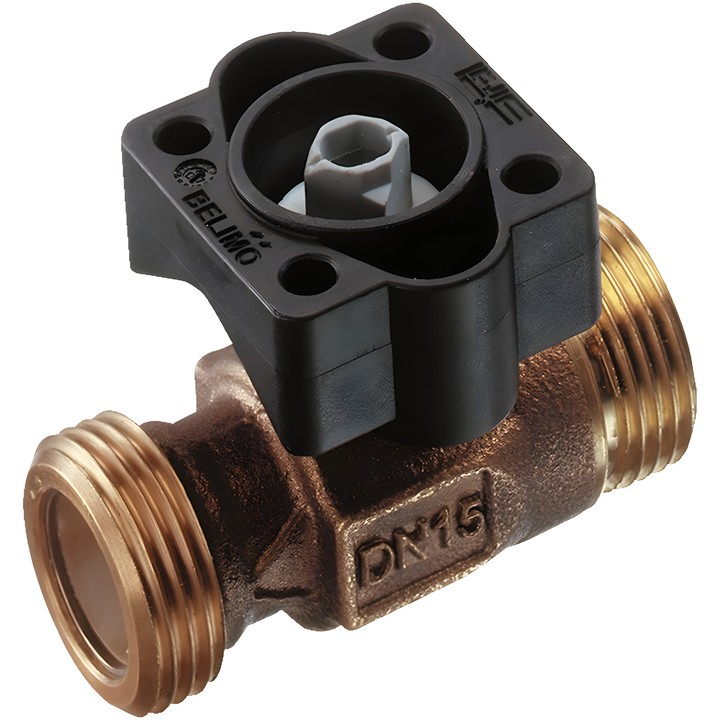

Belimo R405DK - 2-way modulating ball valve

Name: Belimo R405DK - 2-way modulating ball valve
Brand: Belimo
SKU: R405DK
Price: 638.53 PLN
Availability: BackOrder

Belimo

zł638.53

VAT included

zł519.13 tax excluded

Belimo R405DK is a 2-way ball valve with a regulating orifice, DN 10, PN 40, with G 3/4" male thread. The Kvs value is 0.4 m³/h, and the fluid temperature is 2...130°C [36...266°F].

Delivery in approx. 14 days

Belimo R405DK is a 2-way ball valve with a regulating orifice for open and closed water systems. The integrated orifice provides an equal-percentage flow characteristic. The valve is designed for control by a rotary actuator.

Key features

DN 10, PN 40; G 3/4" male thread.
Kvs: 0.4 m³/h; ps: 2700 kPa.
Fluid: water and water with max. 50% by volume glycol; drinking water on request.
Fluid temperature: 2...130°C [36...266°F]. The permitted range may depend on the actuator type.
Differential pressure: ∆pmax 400 kPa; closing pressure: 1400 kPa.
Flow characteristic: equal-percentage; leakage: bubble-tight, leakage class A.
Body: low-lead gunmetal (CuSn4Zn6Pb3).
Rotational angle: 90°; operating range: 15...90°.

Brand

Belimo
Reference

R405DK
EAN13

7630498121906

Kvs

0.4 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

2...130°C [36...266°F]
Fluid temperature, note

The permissible medium temperature may be limited depending on the actuator type. The limitations can be found in the relevant actuator data sheets.
Differential pressure

∆pmax 400 kPa
Closing pressure

1400 kPa
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
