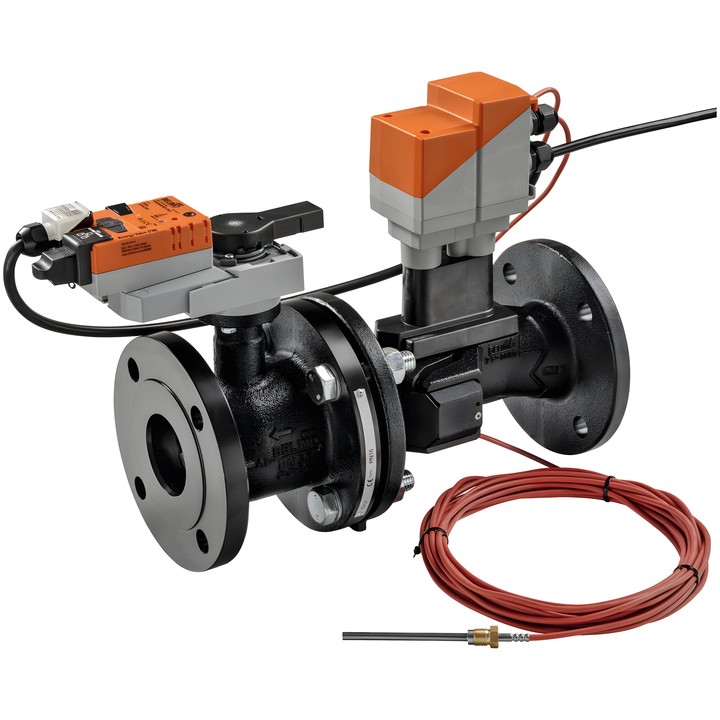

Belimo EV100F+KBAC - DN 100 Energy Valve control valve

Name: Belimo EV100F+KBAC - DN 100 Energy Valve control valve
Brand: Belimo
SKU: EV100F+KBAC
Price: 24979.10 PLN
Availability: BackOrder

Belimo

zł24,979.10

VAT included

zł20,308.21 tax excluded

Belimo EV100F+KBAC is a 2-way, pressure-independent Energy Valve control valve with a safety function. It has a DN 100, PN 16 flange connection and a nominal flow rate of V'nom 20 l/s (72 m³/h).

It enables flow or power control based on sensor measurements and monitors power, energy and glycol concentration. It supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.

Delivery in approx. 14 days

Belimo EV100F+KBAC – DN 100 Energy Valve

A 2-way control valve with a safety function, designed for closed water systems and water-side control in ventilation and heating systems. It combines a control valve, flow and temperature measurement, and an actuator. It can control flow or power based on sensor measurements.

Key features and specifications

Flange connection, DN 100, PN 16; V'nom 20 l/s (72 m³/h).
V'max setting: 30...100% V'nom; ∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
Fluid: water or water with a maximum of 50% vol. glycol; fluid temperature -10...120°C [14...248°F].
Power supply AC/DC 24 V; power consumption during operation 16.5 W, in rest position 6.5 W; wire sizing power 29 VA.
Control signal Y 2...10 V; communication via BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.
Safety function with position setting 0...100%; operating time 35 s / 90°. Manual adjustment by push-button.
Ultrasonic flow measurement, power and energy monitoring, glycol concentration monitoring and an integrated delta T manager.
Data logging for 13 months; configuration via the integrated web server or ZTH EU.
1 m power and control cable, 6x 0.75 mm²; degree of protection IEC/EN IP40; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).
