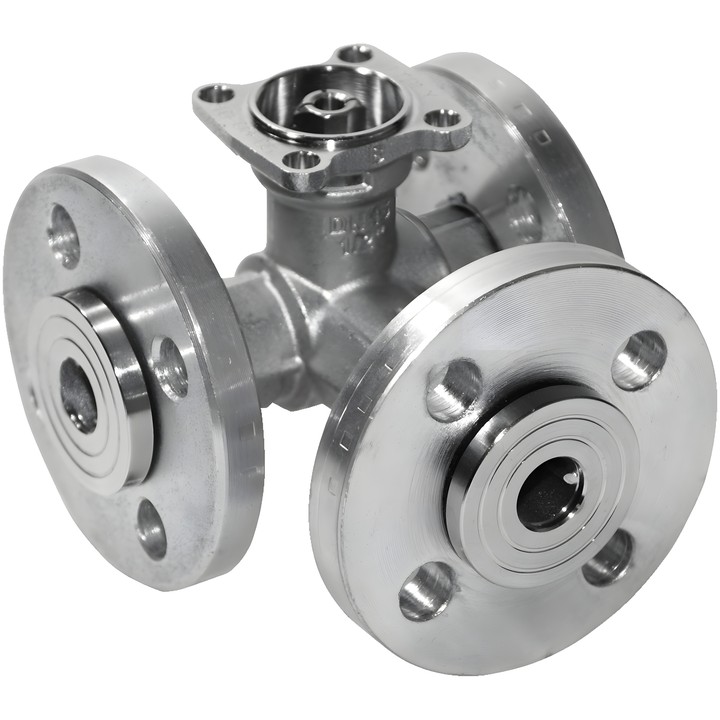

Belimo R7015R1P6-B1 - 3-way flanged control valve

Belimo R7015R1P6-B1 - 3-way flanged control valve

Belimo
zł1,328.72
VAT included
zł1,080.26 tax excluded

3-way valve with regulating orifice for closed water systems. DN 15, PN 6, flanged connection and Kvs 1.6 m³/h. Intended for water-side control in ventilation and heating systems.

Delivery in approx. 14 days
Share

Belimo R7015R1P6-B1

3-way valve with regulating orifice for closed water systems, intended for water-side control in ventilation and heating systems.

Key specifications

  • DN 15, PN 6; flanged connection according to EN 1092-1/4.
  • Kvs 1.6 m³/h; flow through bypass B – AB: 70% of the Kvs value.
  • Medium: water or water with a maximum of 50% vol. glycol; medium temperature -10...100°C [14...212°F].
  • Differential pressure Δpmax 100 kPa; closing pressure ∆ps 600 kPa.
  • Flow characteristic: A – AB equal-percentage, B – AB linear.
  • Tightness: A – AB bubble-tight, leakage rate class A (EN 12266-1); B – AB leakage rate class I (EN 1349 and EN 60534-4), 1...2% of the Kvs value.
  • Nickel-plated brass body; galvanised steel flange.
  • Rotation angle 90°; operating range A – AB 15...90°, B – AB 15...70°.

Installation notes

Permitted installation position: from vertical to horizontal relative to the valve axis; installation with the axis pointing downwards is not permitted. For medium temperatures of -10...2°C, shaft heating or a valve neck extension is recommended. The permissible medium temperature may depend on the actuator type.

  • Brand
    Belimo
  • Reference
    R7015R1P6-B1
  • EAN13
    7630498108693

  • Kvs
    1.6 m³/h
  • Medium
    Water, water with up to 50% vol. glycol.
  • Pattern
    3-way
  • Fluid temperature
    -10...100°C [14...212°F]
  • Fluid temperature, note
    For medium temperatures of -10...2°C, heating the shaft or extending the valve neck is recommended. The permissible medium temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for restrictions.
  • Differential pressure
    ∆pmax 100 kPa
  • Closing pressure
    600 kPa
  • Flow characteristic
    A – AB: equal-percentage; B – AB: linear
  • Permissible leakage
    A – AB: bubble-tight, leakage class A; B – AB: leakage class I, 1...2% of Kvs value
  • Pipe connection
    Flange
