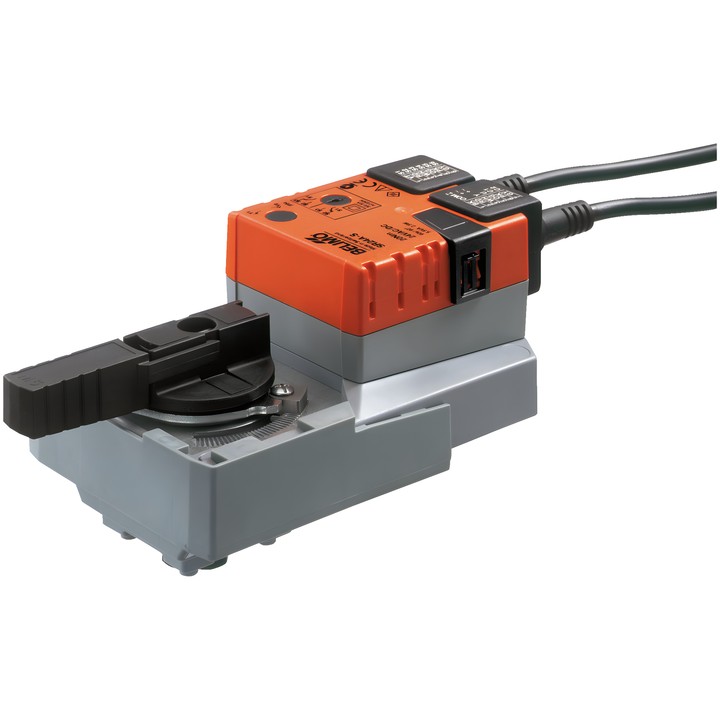

Belimo SR24A-S - rotary actuator for ball valves

Belimo SR24A-S - rotary actuator for ball valves

Belimo
zł894.26
VAT included
zł727.04 tax excluded

Rotary actuator for ball valves with a torque of 20 Nm. AC/DC 24 V power supply, Open/Close or 3-point control, and an operating time of 90 s / 90°.

Equipped with an adjustable 1x SPDT auxiliary switch, 0...100%, a push button for manual control, and a mechanical position indicator. IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo SR24A-S rotary actuator

Belimo SR24A-S is a rotary actuator for ball valves. It supports Open/Close or 3-point control and is equipped with an integrated, adjustable auxiliary switch.

Key features and technical data

  • Motor torque: 20 Nm; operating time: 90 s / 90°.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Power consumption: 2.5 W during operation and 0.2 W at rest; sizing power: 5.5 VA.
  • Auxiliary switch: 1x SPDT, adjustable within 0...100%.
  • Power/control and auxiliary switch connections: 1 m cable, 3x 0.75 mm² for each connection.
  • Manual control by push button with locking option; mechanical, removable position indicator.
  • Rotation angle adjustable using mechanical end stops.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

  • Brand
    Belimo
  • Reference
    SR24A-S
  • EAN13
    7630498114823

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Cable 1 m, 3x 0.75 mm²
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    5.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Auxiliary contacts
    1x SPDT

Techniczna karta katalogowa

Download (1.28MB)

Instrukcja montażu

Download (630.55KB)

Techniczna karta katalogowa – SR24A-S

Download (1.28MB)

EU Declaration of Conformity – SR24A-S

Download (25.63KB)

Environmental Declaration – SR..

Download (72.79KB)
