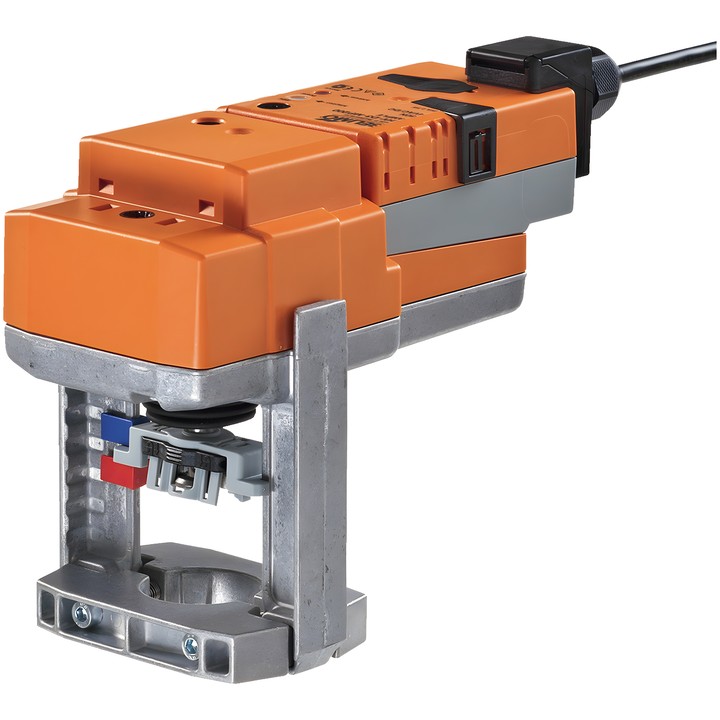

Belimo LV24A-MP-TPC - linear actuator for globe valves

Belimo LV24A-MP-TPC

Communicating linear actuator for 2- and 3-way globe valves. It can operate with an analogue control signal Y or receive a digital control signal via MP-Bus. In MP-Bus mode, it enables the signal from a connected sensor to be transmitted to the higher-level system.

Key features and specifications

• Actuator force: 500 N; stroke: 15 mm.
• Rated voltage: AC/DC 24 V, 50/60 Hz.
• Power consumption during operation: 2 W; at rest: 1.5 W; power rating for cable sizing: 4 VA.
• Modulating control: Y range 2...10 V; feedback signal U 2...10 V.
• MP-Bus communication; max. 8 MP-Bus nodes.
• Running time: 150 s / 15 mm; adjustable running time: 90...150 s.
• Manual override using a push-button, with option to lock; setting range adaptation.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm², 4 mm² terminal.
• IEC/EN IP54 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).

The actuator is protected against overload and stops automatically when the end position is reached. Parameter settings can be changed using Belimo Assistant 2.
