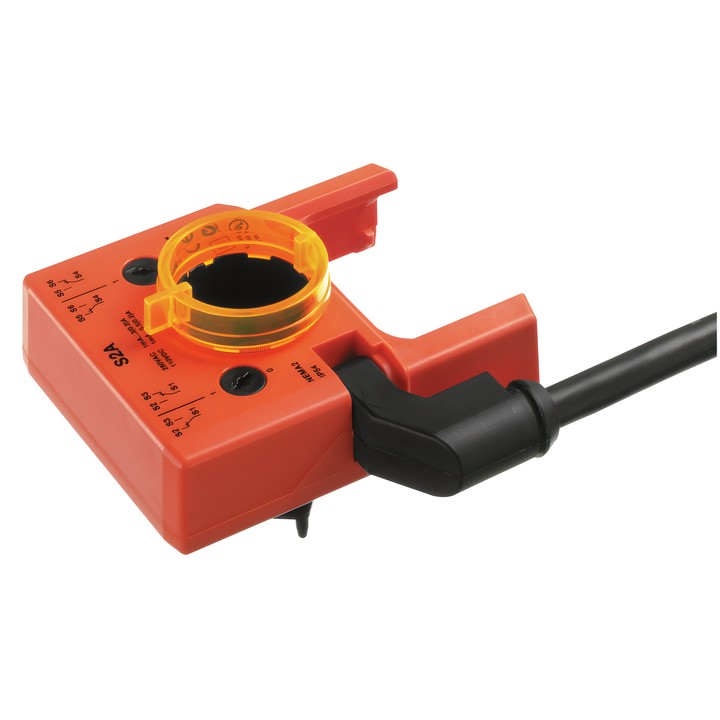

Belimo S2A - clip-on auxiliary switch

Name: Belimo S2A - clip-on auxiliary switch
Brand: Belimo
SKU: S2A
Price: 284.99 PLN
Availability: BackOrder

Belimo

zł284.99

VAT included

zł231.70 tax excluded

Clip-on auxiliary switch for damper actuators and rotary actuators. Equipped with two SPDT contacts with adjustable switching points across the 0...100% range.

Connection: 1 m cable, 6 x 0.75 mm². Degree of protection IP54.

Delivery in approx. 14 days

Belimo S2A – clip-on auxiliary switch

Auxiliary switch for position indication or switching functions at a selected actuator angle. Mounted directly on the shaft clamp of a damper actuator or on the position indicator of a rotary actuator.

Key features and technical data

Auxiliary contacts: 2x SPDT.
Switching points: adjustable across 0...100% of actuator rotation.
Contact rating: 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V / 1 mA...0.5 A (0.2 A inductive; L/R = 3.4 ms), DC 5 V...DC 110 V.
Connection: 1 m cable, 6 x 0.75 mm².
Degree of protection: IP54; NEMA 2. Enclosure type: UL Enclosure Type 2.
Ambient temperature: -30...50°C [-22...122°F].
Product weight: 0.26 kg.

Adjust the auxiliary contacts only when the power supply is switched off.
