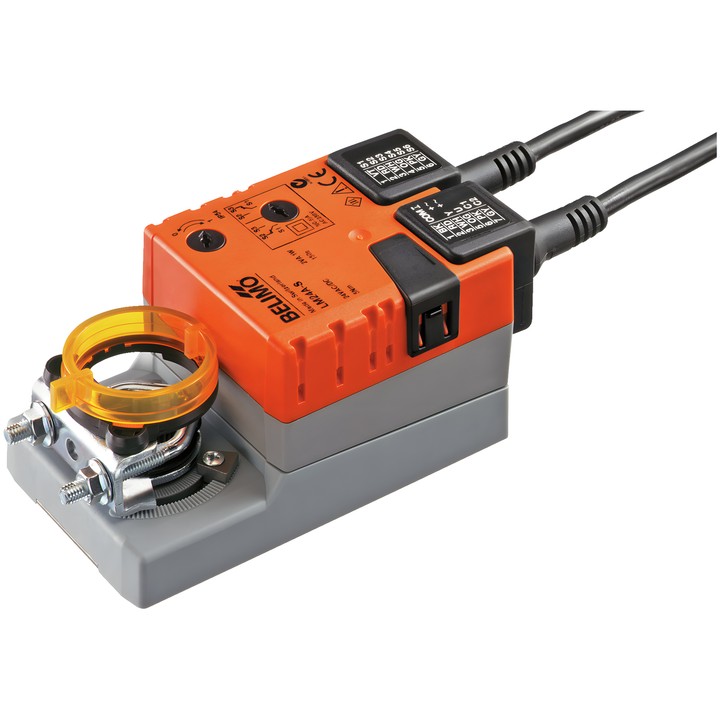

Belimo LM24A-S damper actuator with a torque of 5 Nm, AC/DC 24 V supply and Close/Open or 3-point control. Motor running time is 150 s / 90°.

Equipped with an integrated 1x SPDT auxiliary switch, universal clamp 6...20 mm and push-button manual override.

Delivery in approx. 14 days
Share

Belimo LM24A-S – damper actuator

Actuator designed for positioning dampers in building technical systems. The documentation specifies a damper size of up to approx. 1 m².

Key features and parameters

  • Motor torque: 5 Nm.
  • Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Integrated auxiliary switch: 1x SPDT, switching position adjustment 0...100%.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°, with the option of limiting it using mechanical stops on both sides.
  • Direction of rotation selected by switch: 0 (counterclockwise) / 1 (clockwise).
  • Push-button manual override, with the option of locking; mechanical position indicator.
  • Mechanical connection: universal clamp 6...20 mm.
  • Power / control connection and auxiliary switch connection: separate 1 m cables, 3x 0.75 mm².
  • Power consumption during operation: 1 W; in standby position: 0.2 W; for cable sizing: 1.5 VA.
  • Degree of protection IEC/EN: IP54; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM24A-S
  • EAN13
    7630498112300

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Cable 1 m, 3x 0.75 mm²
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    1.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Auxiliary contacts
    1x SPDT
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm
