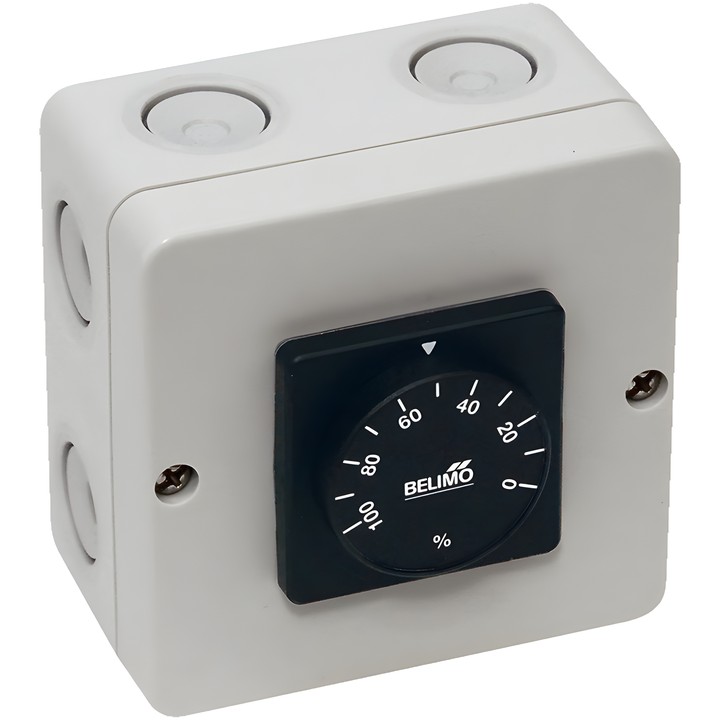

Belimo SGA24 - wall-mounted positioner

Belimo SGA24 - wall-mounted positioner

Belimo
zł459.80
VAT included
zł373.82 tax excluded

Belimo SGA24 is a wall-mounted positioner designed to control modulating damper actuators. It generates a Y control signal in a selectable range of 0...10 V or 2...10 V, according to the position of the knob.

The device is powered by AC/DC 24 V and has a 0...100% scale. The knob's rotation angle can be mechanically limited.

Delivery in approx. 14 days
Share

Belimo SGA24 positioner

SGA24 is used to control modulating damper actuators, including remotely, or to limit the minimum output signal of modulating controllers. The knob position determines the Y control signal; the adjustment range corresponds to 0...100% of the connected actuator's rotation angle.

Key features and technical data

  • Surface-mounted wall installation.
  • Selectable Y operating range: 0...10 V or 2...10 V.
  • 0...100% scale; the knob's rotation angle can be mechanically limited.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Rated voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V.
  • Power consumption during operation: 0.3 W; power for cable sizing: 1 VA.
  • Power and control connection: 1.5 mm² terminals.
  • IEC/EN protection rating: IP40; IEC/EN protection class: III, SELV.
  • Ambient temperature: -20...50°C [-4...122°F].
  • Maximum ambient humidity: 95% RH, non-condensing.

Power must be supplied from an isolating transformer. Installation may only be carried out by authorised specialists.

  • Brand
    Belimo
  • Reference
    SGA24
  • EAN13
    7630498103230

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    0.3 W
  • Rated power
    1 VA
  • Power supply control connection
    1.5 mm² terminals
  • Protection rating
    IP40
  • Ambient temperature
    -20...50°C [-4...122°F]

Techniczna karta katalogowa

Download (881.46KB)

Techniczna karta katalogowa – SGA24

Download (884.06KB)
