Belimo SH24A-SR200 - modulating linear actuator

Belimo SH24A-SR200 - modulating linear actuator

Belimo
zł1,001.31
VAT included
zł814.07 tax excluded

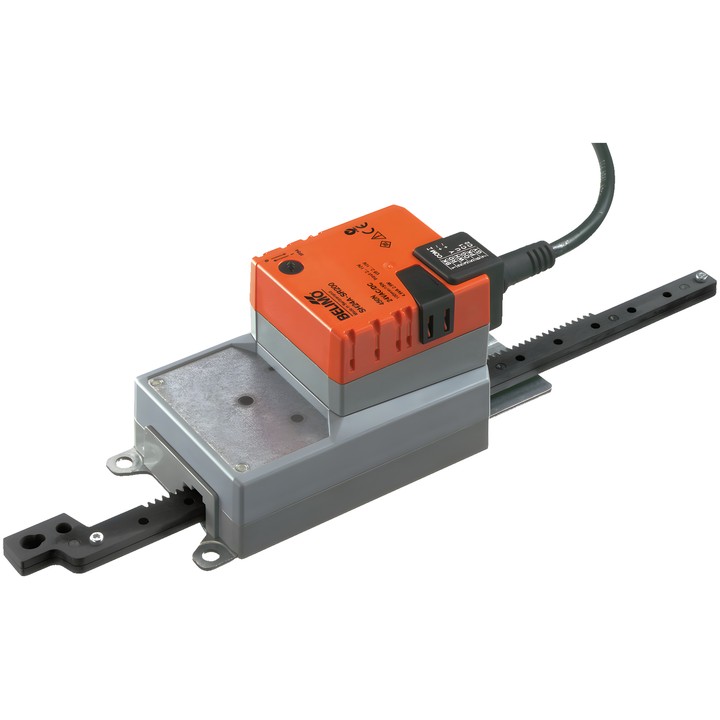

Belimo SH24A-SR200 linear actuator for controlling dampers and gate valves in building services systems. Force 450 N, AC/DC 24 V supply and 2...10 V modulating control.

Stroke 200 mm, running time 150 s / 100 mm, 2...10 V position feedback signal and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo SH24A-SR200

Modulating linear actuator for controlling dampers and gate valves in building services systems. The technical data sheet specifies an air damper size of up to approx. 3 m².

Key features and specifications

  • Motor force: 450 N; stroke: 200 mm (max. 200 mm, fixed setting).
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Motor running time: 150 s / 100 mm.
  • Power consumption during operation: 2.5 W; at rest: 0.4 W; for cable sizing: 4.5 VA.
  • Direction of movement selected by switch; manual override with push-button and lock option.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when the end stop is reached.

  • Brand
    Belimo
  • Reference
    SH24A-SR200
  • EAN13
    7630498114281

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    4.5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    450 N
  • Manual override
    Push-button, with locking option
  • Stroke
    200 mm
  • Running time (motor)
    150 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch
