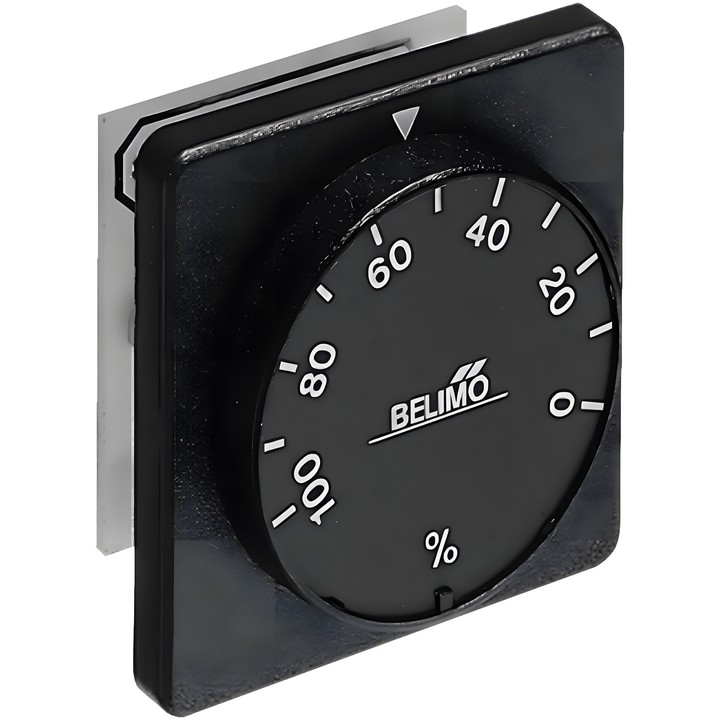

Belimo SGF24 - panel-mount positioner
Price:
zł327.45
VAT included
zł266.22 tax excluded
Belimo SGF24 is a panel-mount positioner designed to control modulating damper actuators. It generates a Y control signal in the range 0...10 V or 2...10 V, proportional to the knob position.
The device is powered by AC/DC 24 V. The adjustment scale is 0...100%, and the knob rotation angle can be mechanically limited.
Belimo SGF24 positioner
SGF24 is designed for panel mounting. It is used to control modulating damper actuators, including remotely, or as a minimum positioner that limits the lower level of the controller output signal.
Key features and parameters
- Adjustment range: 0...100% of the connected actuator's rotation angle; the knob rotation angle can be mechanically limited.
- Y control signal: selectable range 0...10 V or 2...10 V.
- Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
- Rated voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V.
- Power consumption during operation: 0.3 W; power for cable sizing: 1 VA.
- Power and control connection: 1.5 mm² terminals.
- Degree of protection: IP40; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
- Ambient temperature: -20...50°C [-4...122°F].
- Maximum ambient humidity: 95% RH, non-condensing.
Power must be supplied from an isolating transformer. Installation may only be carried out by authorised specialists.
-
Brand
-
ReferenceSGF24
-
EAN137630498102790
-
AC/DC voltageAC/DC 24 V
-
Power consumption (running)0.3 W
-
Rated power1 VA
-
Power supply control connection1.5 mm² terminals
-
Protection ratingIP40
-
Ambient temperature-20...50°C [-4...122°F]
